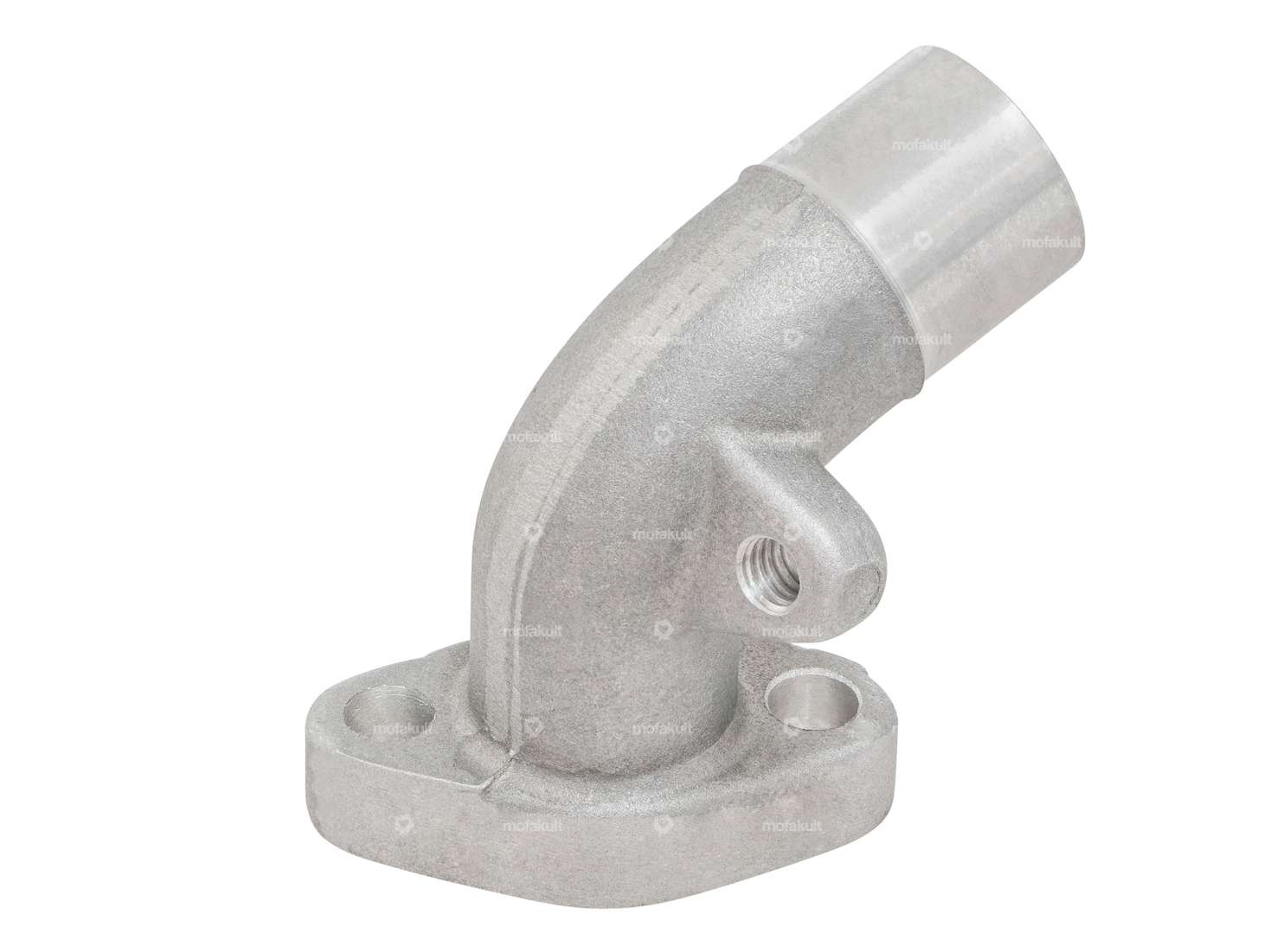

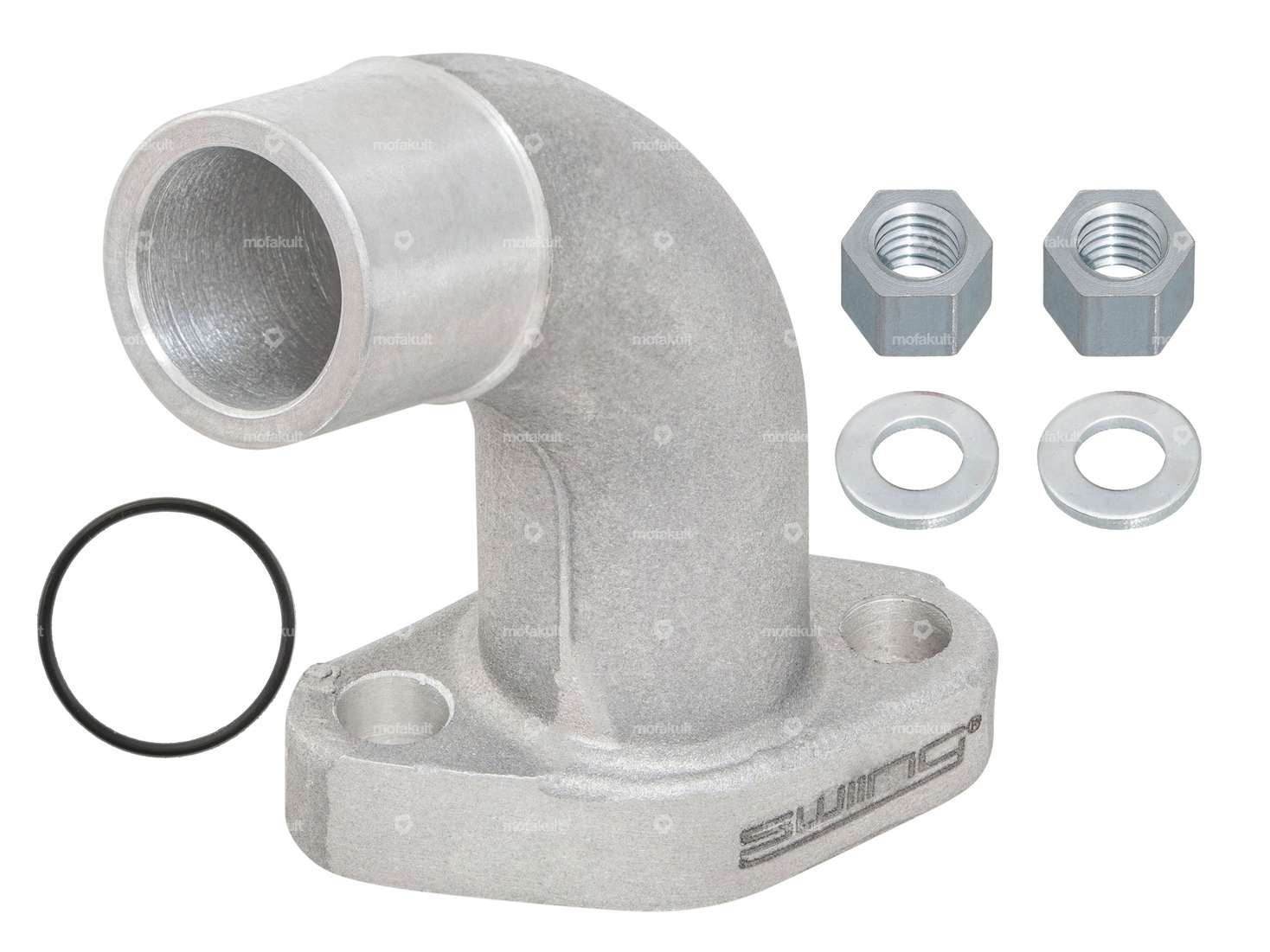

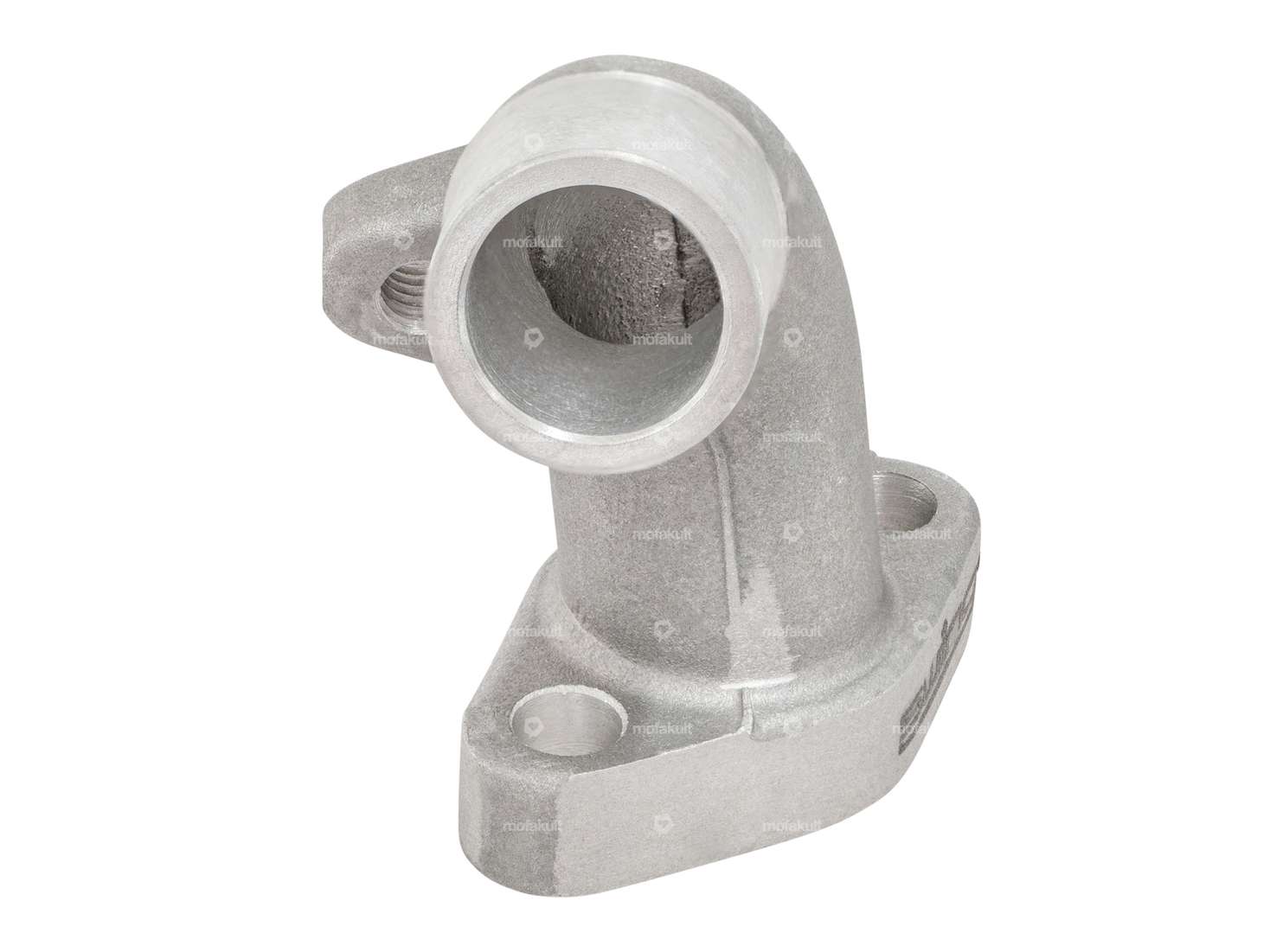

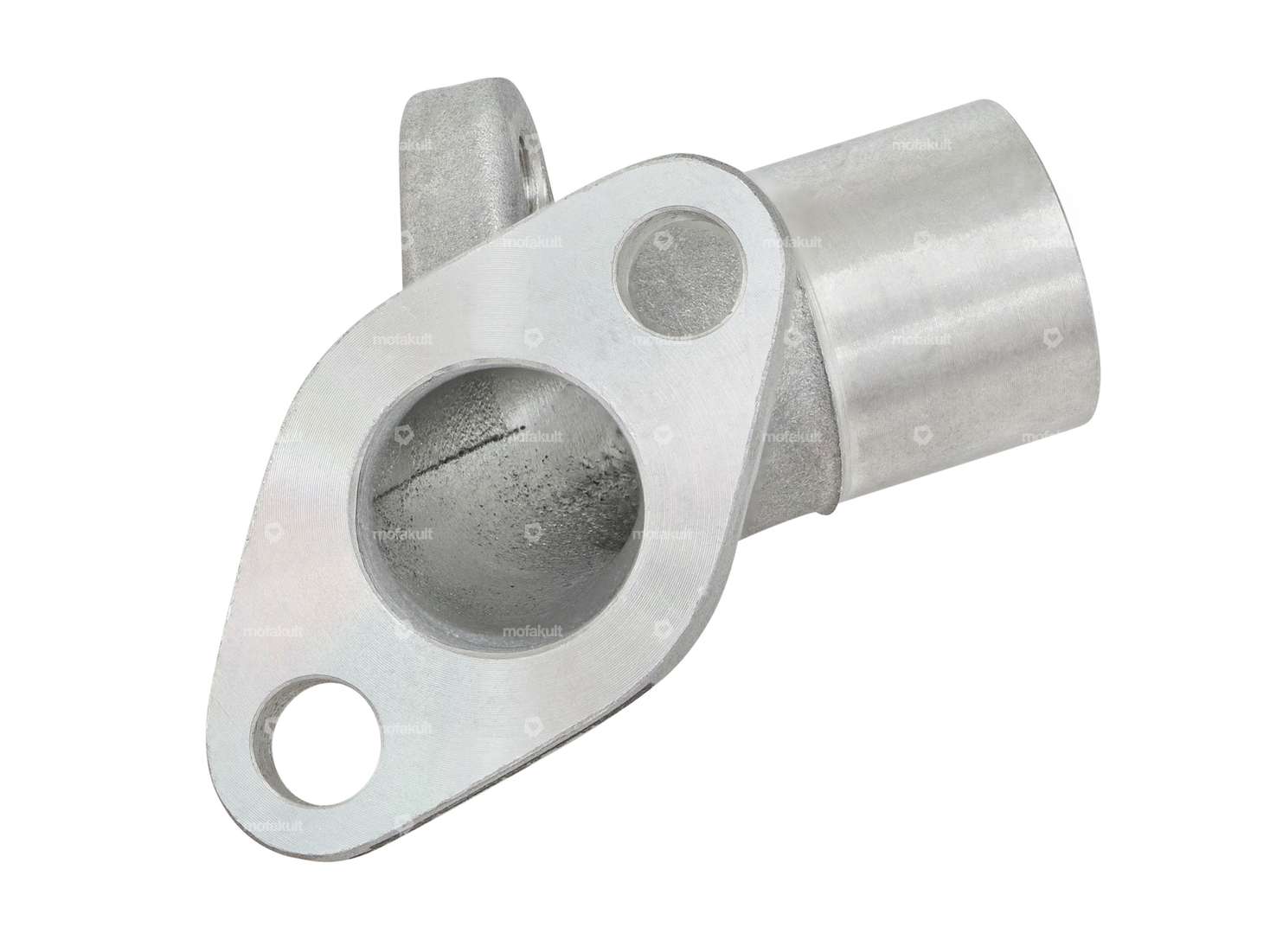

swiing® ingenious 15 mm intake manifold short version | Sachs 503 2AL, 2BL

Magura set screw M6x34 mm lock nut SW8

Thread type: M6x1 (standard thread) · Thread length: 24 mm · Total length: 34 mm · Slotted: No · Ø Receptacle: 7.05 mm · Manufacturer: Magura · Ø cable holder: 3.05 mm · Width across flats nut: 8 mm · Width across flats Screw: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated

swiing® ingenious 15 mm carburetor tuning camouflaged | Sachs 503

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Area of application: Tuning · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm

swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL

Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 15 mm · Thread type: M6x1 (standard thread) · Ø External connection: 20 mm · Hole spacing inlet: 32 mm · Total height: 80 mm · Height flange center hole: 70 mm · Total length: 70 mm · Number of fixing points: 2 pcs · Camouflaged: No · Area of application: Tuning · Mounting type: Screws · Pony OEM number: A2176

GPO 41 mm "Pomodoro" cylinder kit | Sachs 503

Manufacturer: GPO · Material: Gray cast iron · Nominal diameter: 41 mm · Displacement: 55 ccm · Area of application: Tuning · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 22 mm · Ø Inlet inside: 19 mm · Hole spacing inlet: 32 mm · Thread inlet: M5x0.8 (standard thread) · Outlet type: clamped · Hole pattern [mm]: 40 x 60 / 37 x 37

GPO 43 mm "Pomodoro" cylinder kit | Sachs 503

Nominal diameter: 43 mm · Manufacturer: GPO · Material: Gray cast iron · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 22 mm · Hole pattern [mm]: 40 x 60 / 37 x 37 · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole spacing inlet: 32 mm

swiing® ingenious intake manifold 17 mm short version | Sachs 503 2AL, 2BL

Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 17 mm · Thread type: M6x1 (standard thread) · Ø External connection: 23 mm · Hole spacing inlet: 32 mm · Total length: 50 mm · Number of fixing points: 2 pcs · Area of application: Racing · Area of application: Tuning · Alternative version of the Pony OEM number: A2177

Magura set screw M6x34 mm lock nut SW8

Thread type: M6x1 (standard thread) · Thread length: 24 mm · Total length: 34 mm · Slotted: No · Ø Receptacle: 7.05 mm · Manufacturer: Magura · Ø cable holder: 3.05 mm · Width across flats nut: 8 mm · Width across flats Screw: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated

swiing® revival seal Float SRE, SRC, SRF, SRA

Manufacturer: swiing® revival parts · Material: Sealing paper · Component group Carburetor: Sealing, revising · Surface: blank · Ø inside: 41 mm · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Ø outside: 45 mm · Thickness: 1.5 mm · Pony OEM number: A4519 · Sachs OEM no.: 0950 128 000

swiing® revival inlet gasket cylinder "swiing" | Sachs 503

Manufacturer: swiing® revival parts · Place of use: Admission · Ø cylinder: 38 - 40 mm · Thickness: 2 mm
