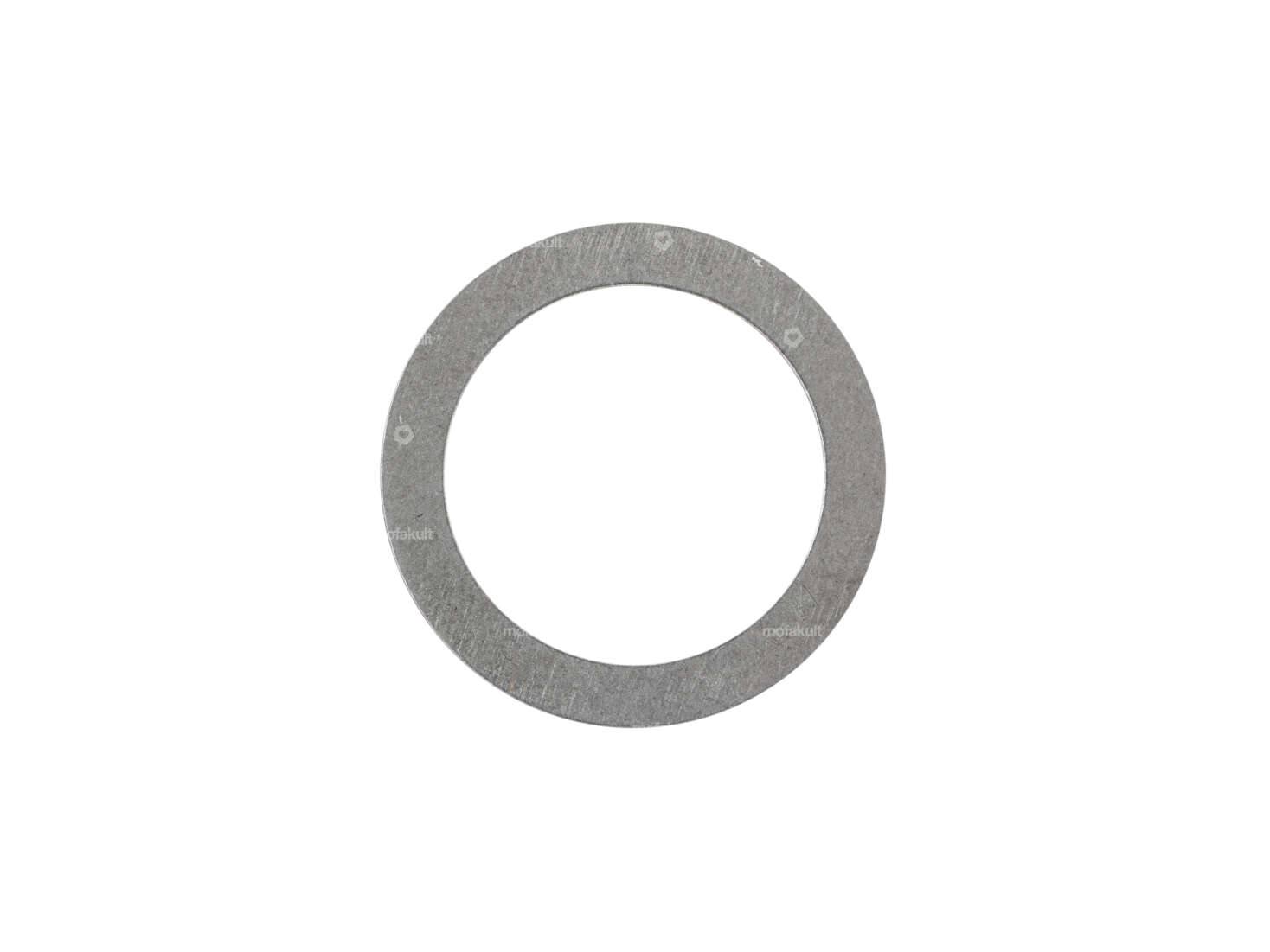

Spacer washer 19.1x26x0.5 mm for the countershaft in the gearwheel of the second gear on Sachs 503 ABL, AB, AC and ADV engines.
The spacer washer, which is mounted between the freewheel body and the bearing rollers or bearing rings, is made of hardened spring steel.
Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.5 mm
Tolerance: DIN988 (-0.03 mm permissible for thickness)
This component is also known as a shim, bearing washer or thrust washer, depending on how it is used.
Original Sachs spare part number: A5615
The set includes the following fixed parts:
Details
| Tolerance | DIN 988 (-0.03 mm) |
| Manufacturer | Sachs |
| Material | Spring steel |
| Surface | Hardened |
| Ø inside | 19.1 mm |
| Ø outside | 26 mm |
| Nominal diameter inside | 19 mm |
| Thickness | 0.5 mm |
| Pony OEM number | A5615 |
| Sachs OEM no. | 0244 171 001 |
Suitable for the following models
| Sachs | 503 - ABL, AB, AC, ADV |
