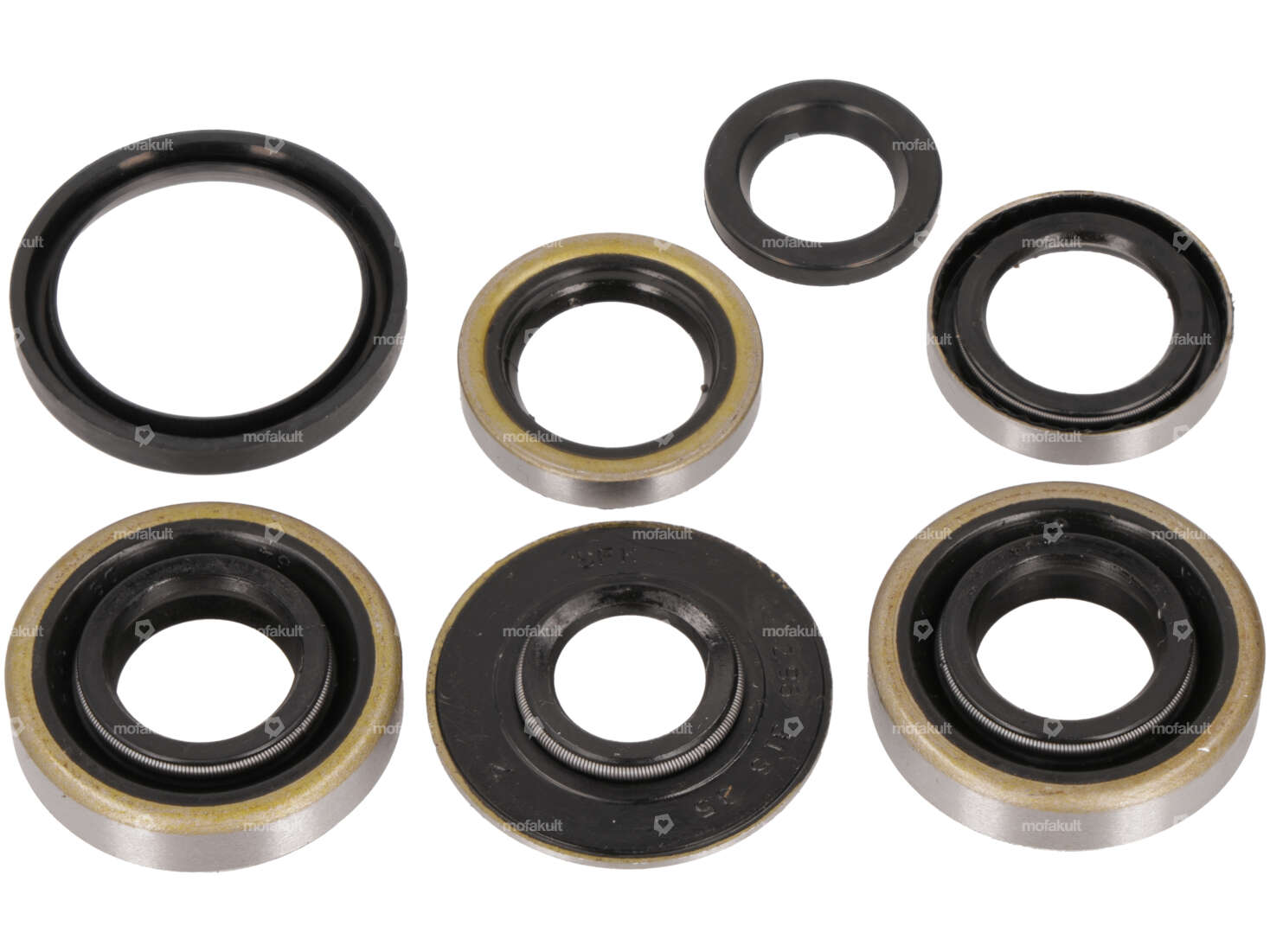

Complete shaft seal set suitable for Sachs 2-speed engines that have the pedal axle installed in the engine.
The set consists of seven oil seals (also known under the famous brand name Simmerring®):
- 15/30/7 B DUO - 2 pieces (crankshaft left & right)
- 16/24/4 - 2 pieces (pedal shaft left & brake shaft)
- 12.96/31.5/3.5 - 1 piece (pinion shaft)
- 31.4/24.8/4 - 1 piece (outer brake shaft)
- 12.8/19/2.5 - 1 piece (clutch lever)
The oil seal 12.8/19/2.5 for the shift shaft is not included, you can find it in the accessories section.
Single oil seals as well as tools and complete sets can be found in the accessories section.
Details
| Ø inside | 12.96 mm, 13.8 mm, 15 mm, 16 mm, 31.4 mm |
| Width | 2.5 mm, 3.5 mm, 4 mm, 7 mm |
| Ø outside | 19 mm, 24 mm, 24.8 mm, 30 mm, 31.5 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) |
