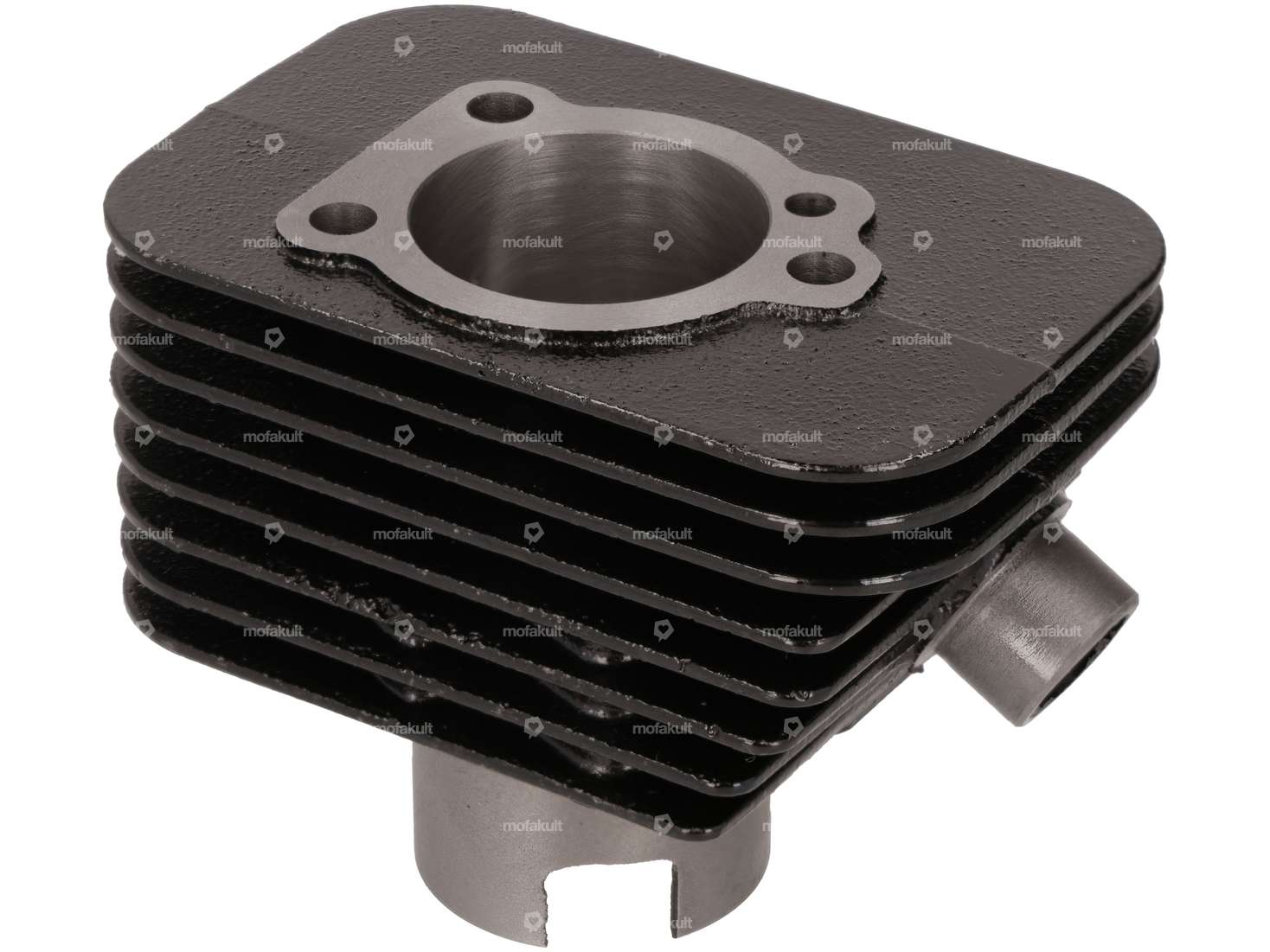

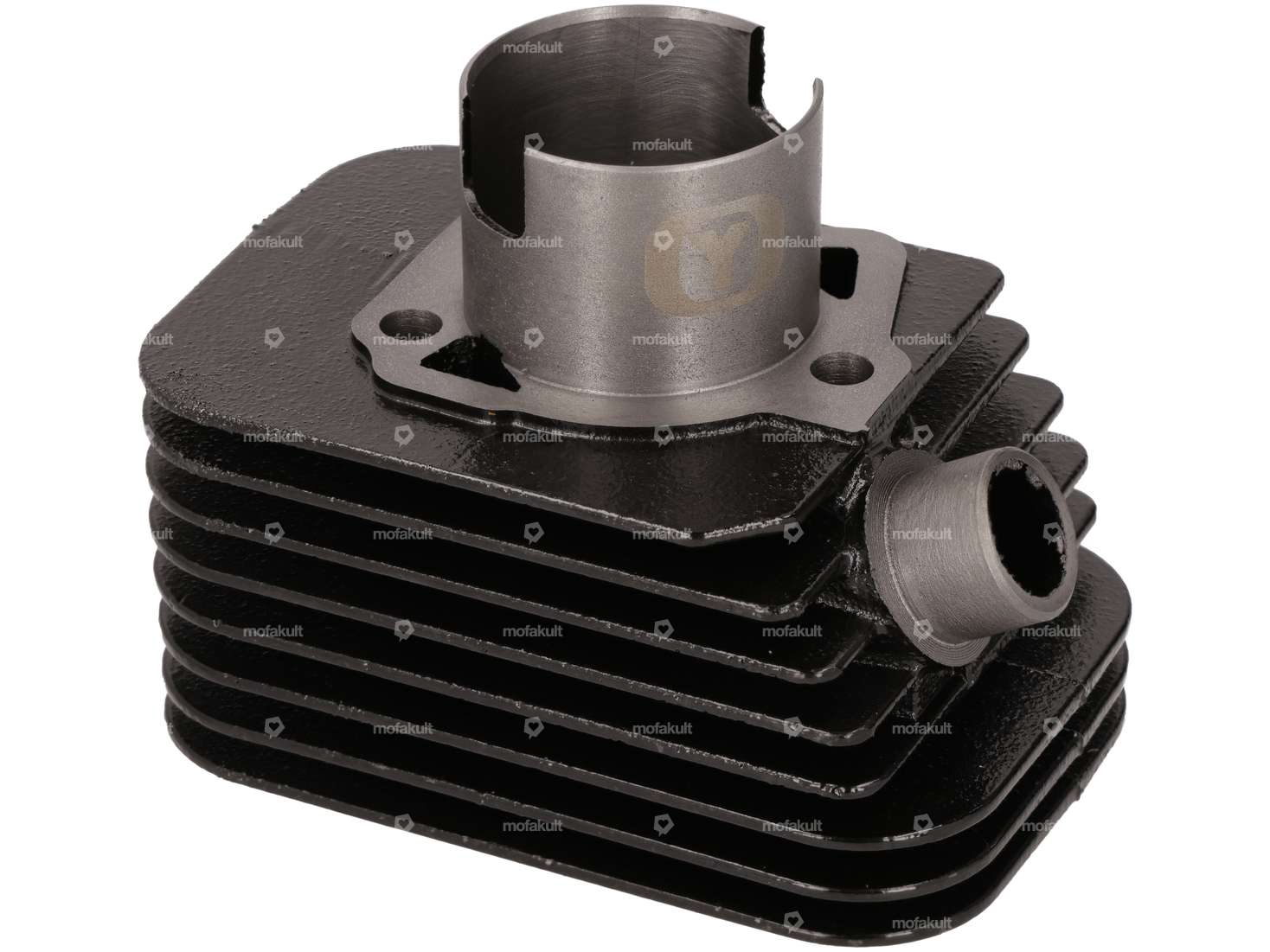

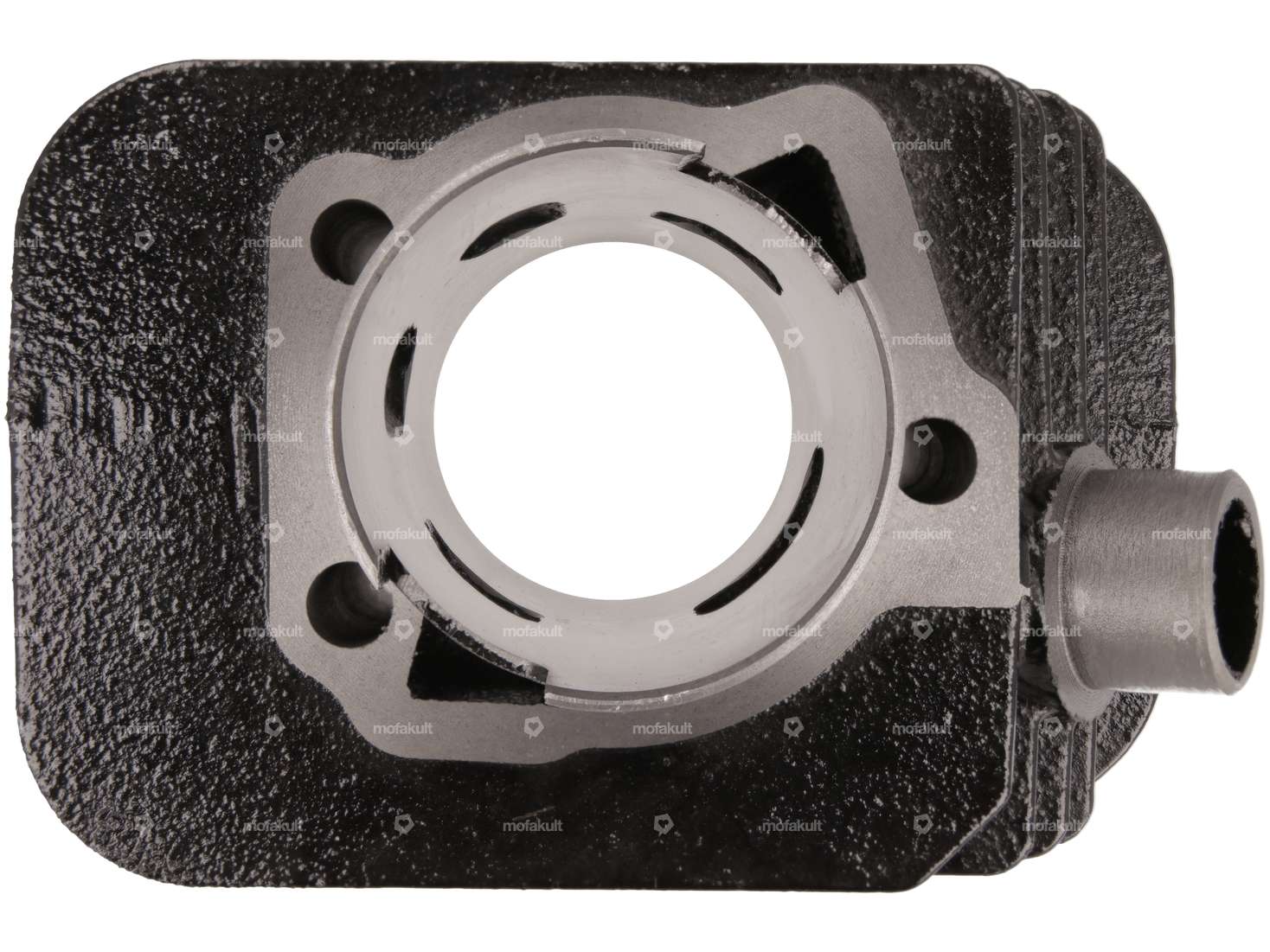

43 mm tuning cast cylinder with 63 cc and 10 mm KoBo suitable for your Piaggio moped / moped.
With the exception of the cylinder head, all parts required for assembly are included in the scope of delivery.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. The cylinder should therefore be cleaned with compressed air or brake cleaner before installation. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
Details
| Manufacturer | Olympia |
| Material | Gray cast iron |
| Surface | varnished |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 46 mm |
| Nominal diameter | 43 mm |
| Ø Outlet outside | 22.3 mm |
| Ø outlet inside | 17.8 mm |
| Ø piston pin (B) | 10 mm |
| Decompressor | Yes |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 35 x 55 |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

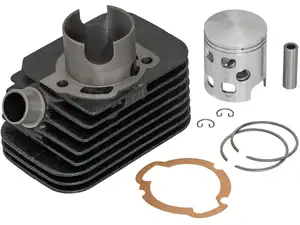

DR 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 43 mm · Manufacturer: DR Racing Parts · Material: Gray cast iron · Area of application: Tuning · Surface: varnished · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø outlet inside: 18 mm · Decompressor: Yes · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Hole pattern [mm]: 55 x 34 · Outlet type: clamped · Camouflaged: No
EUR 167.90
Olympia cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao
Manufacturer: Olympia · Material: Aluminum · Total length: 120 mm · Height: 60 mm · Ø cylinder: 41 - 43 mm · Width: 78 mm · Candle thread: short · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning
EUR 30.40
Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18.3 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Outlet type: clamped · Area of application: Tuning · Hole pattern [mm]: 55 x 34 · Decompressor: Yes
EUR 170.30
Polini 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Nominal diameter: 43 mm · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Ø cylinder neck: 45.8 mm · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 217.30

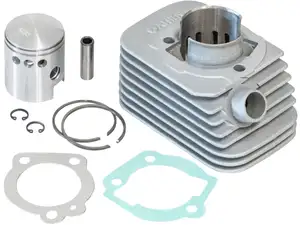

Athena 43 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
