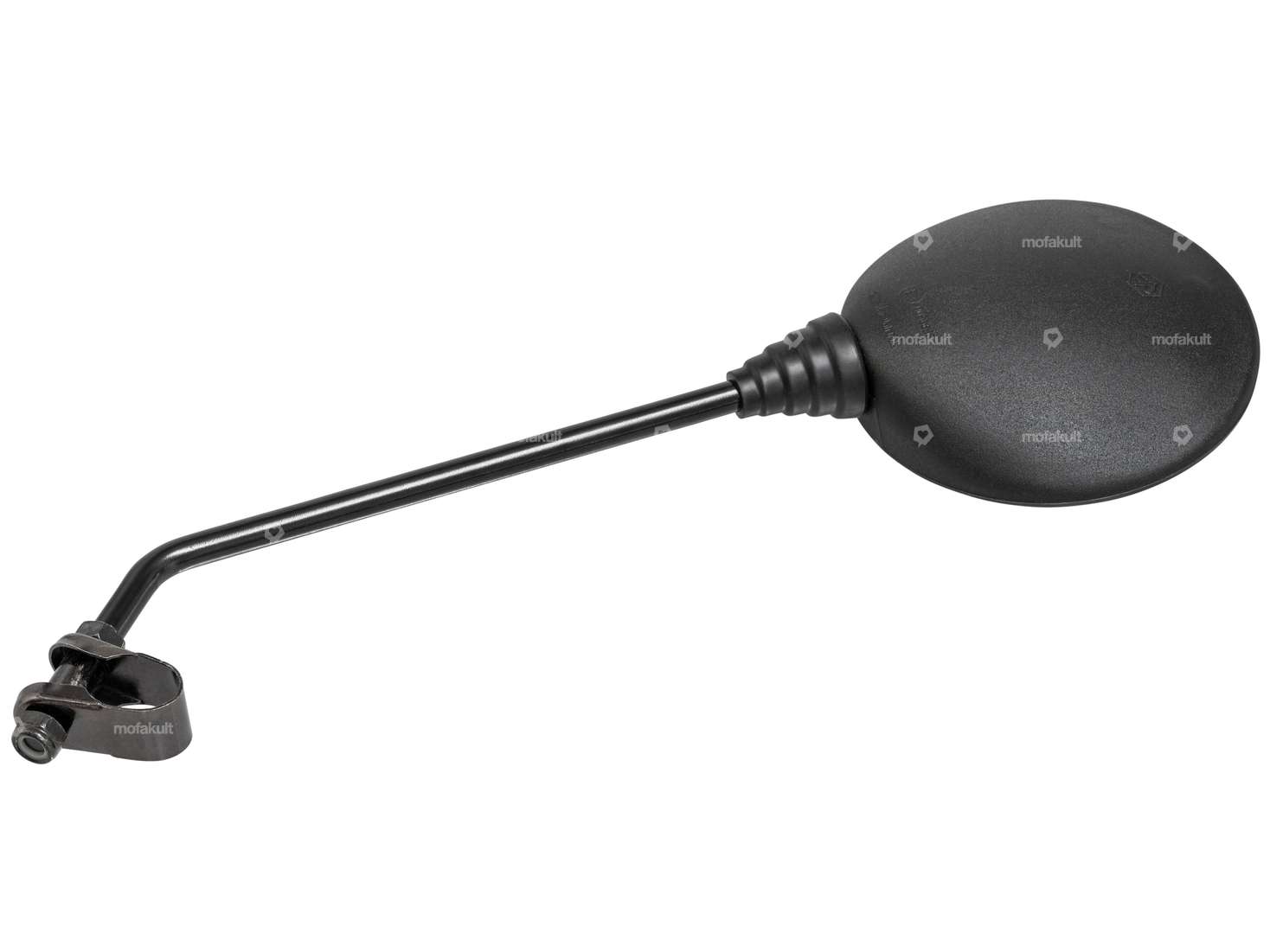

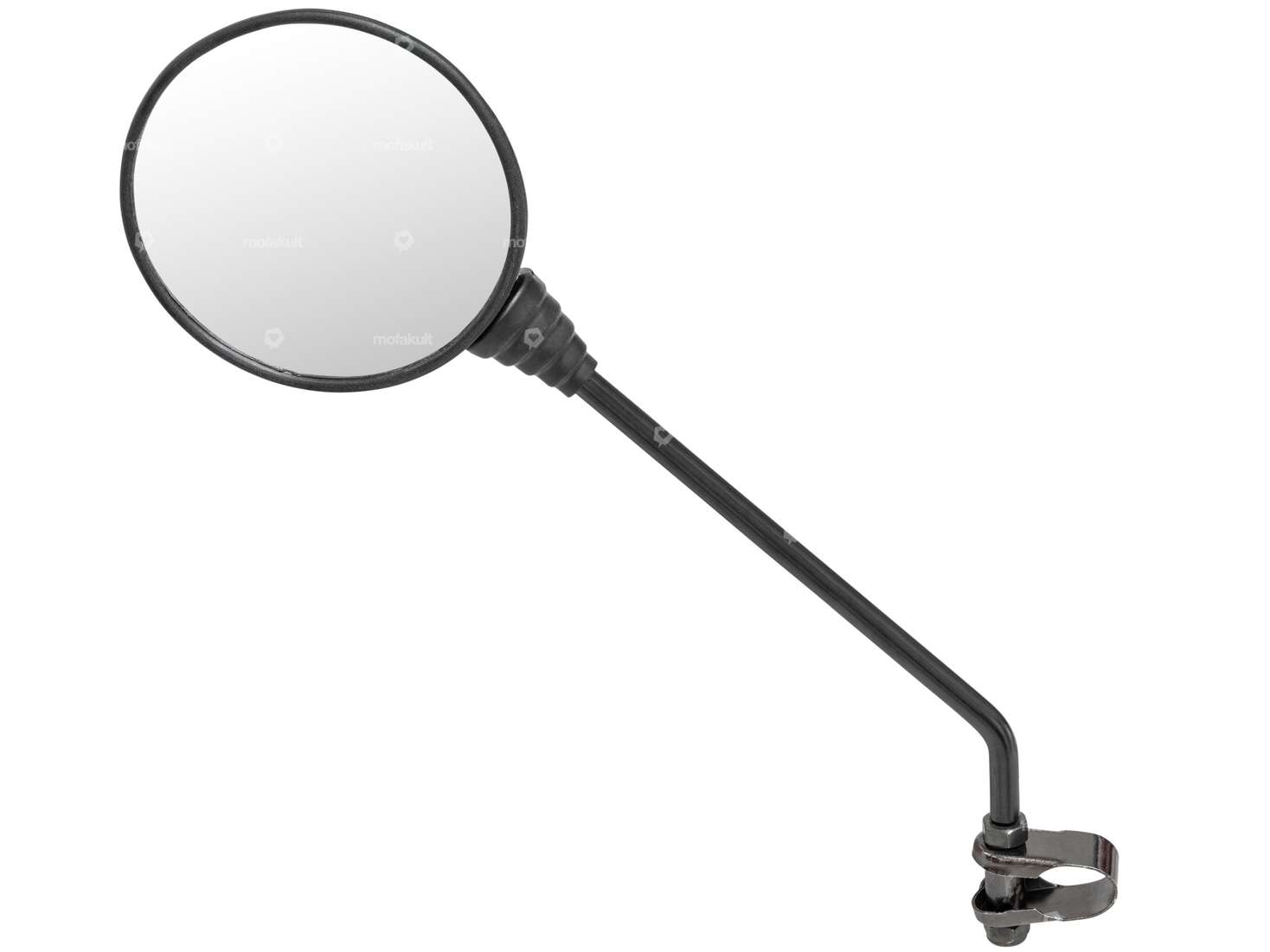

Mirror round black NOS | Piaggio Ciao C24, SI

Bumm mirror round standard black / chrome

Mirror property: downsizing · Manufacturer: Bumm · Material: Glass · Material: Plastic · Material: Steel · Surface: chrome-plated · Surface: raw · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Color: Chrome · Color: black · Ø mirror surface: 102 mm · Ø mirror rod: 8 mm · Total length: 300 mm · Mirror rod length: 190 mm · Clamping diameter: 22 mm · Test mark: none

Headlight black | Piaggio Ciao PX, C24

Manufacturer: Made in Italy · Test mark: none · Housing material: Plastic · Lens material: Plastic · Color: black · Bulb holder: P26s · Tension: 6 V · Tension: 12 V · Speedometer recording: 48 mm · Switch included: Yes · Battery operated: No · Ø External connection: 6.3 mm · Width: 125 mm · Height: 90 mm · Depth: 147 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Original · Area of application: Standard · Piaggio OEM number: 584240

Bumm mirror round standard black

Manufacturer: Bumm · Material: Steel · Surface: varnished · Thread size: M8 · Thread type: M8x1.25 (standard thread) · Color: black · Ø mirror surface: 102 mm · Ø mirror rod: 8 mm · Total length: 305 mm · Mirror rod length: 190 mm · Clamping diameter: 22 mm

HAERRY trailer coupling | Piaggio Ciao SC, PX, C24

Manufacturer: HAERRY · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Ø ball: 30 mm · Total length: 133 mm · Thread type: MF8x1 (fine pitch thread)

Bumm mirror oval left chrome

Manufacturer: Bumm · Material: Steel · Surface: chrome-plated · Color: Chrome · Mirror surface length: 120 mm · Wide mirror surface: 80 mm · Ø mirror rod: 10 mm · Mirror rod length: 290 mm · Thread size: M8

Taillight black original | Piaggio Ciao PX, C24, Bravo

Manufacturer: Piaggio · Test mark: E3 · Material: Plastic · Color: black · Color: red · Bulb holder: BA9s · Width: 133 mm · Depth: 42 mm · Height: 59 mm · Battery operated: No · Brake light: Yes · Reflectors: Yes · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs

66HEROES mirror mount M8 aluminum black

Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Color: black · Clamping diameter: 22 mm · Total length: 40 mm · Width: 16 mm · Height: 36 mm · Thread type: M10x1.5 (standard thread)

66HEROES mirror mount M8 aluminum chrome

Manufacturer: 66HEROES · Material: Aluminum · Surface: anodized · Color: Chrome · Clamping diameter: 22 mm · Total length: 40 mm · Width: 16 mm · Height: 36 mm · Thread type: M8x1.25 (standard thread)

Mirror angular black NOS | Piaggio

Manufacturer: Piaggio · Material: Plastic · Surface: raw · Color: black · Mirror surface length: 105 mm · Wide mirror surface: 105 mm · Ø mirror rod: 22 mm · Mirror rod length: 170 mm · Total length: 300 mm · Thread type: M8x1.25 (standard thread) · Test mark: none

GPO bulb 6V - 15W (P26s) with collar, 1 filament

Manufacturer: GPO · Bulb holder: P26s · Tension: 6 V · Color: white · Ø base: 26 mm · Performance: 15 W · Test mark: none · Ø Lamp head: 25 mm · Total length: 43 mm · LED: No

Pedals angular | Piaggio Ciao. SI, Bravo

Material: Plastic · Surface: ribbed · Color: black · Drive: Outer edge · Thread type: FG14.3 (9/16" 20G) · Width across flats SW: 15 mm · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Reflectors: Yes

swiing® revival front fender primed | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Steel · Surface: primed · Color: black · Wheel size [inch]: 16 " · Wheel size [inch]: 17 " · Folding the ends: open folded · Shape of the mudguard: partly round · Total length over ends: 510 mm · Scope: 640 mm · Wide mudguard profile: 76 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 162 mm · Mounting type: Nuts & bolts · Piaggio OEM number: 274184

Lockable fuel filler cap | Piaggio Ciao

Material: Plastic · Fuel filler cap: Plug 33 mm · Lockable: Yes · Color: black · Vented: Yes · Ø External head: 54 mm · Height: 105 mm

Cable set black | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Color: black · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm

GPO speedometer drive 16" | Piaggio Ciao, SI, Bravo

Manufacturer: GPO · Material: Aluminum · Place of use: left · Ø axle: 11 mm · Ø outside: 42.3 mm · Wheel size [inch]: 16 " · 4-edge speedometer cable: 2.5 mm · Ø mounting hole: 11.3 mm

Headlight grille black | Piaggio Ciao

Manufacturer: Made in Italy · Test mark: none · Material: Plastic · Color: black · Width: 132 mm · Height: 95 mm · Depth: 27 mm · Hole spacing: 105 mm

Fuse plate emblem original | Piaggio Ciao, SI, Bravo, Boxer

Width: 8 mm · Manufacturer: Piaggio · Clamping range: 3 - 5 mm · Total length: 13 mm · Piaggio OEM number: 008108

Headlight with parking light black | Piaggio Ciao PX, C24

Width: 125 mm · Manufacturer: Quenching · Depth: 147 mm · Area of application: Standard · Bulb holder: P26s · Housing material: Plastic · Bulb holder: Soffit pear · Surface: raw · Tension: 6 V · Tension: 12 V · Lens material: Plastic · Color: black · Mounting type: Screws · Number of fixing points: 2 pcs · Test mark: none · Ø External connection: 6 mm · Speedometer recording: 48 mm · Switch included: Yes · Height: 90 mm · Battery operated: No · Piaggio OEM number: 584240
