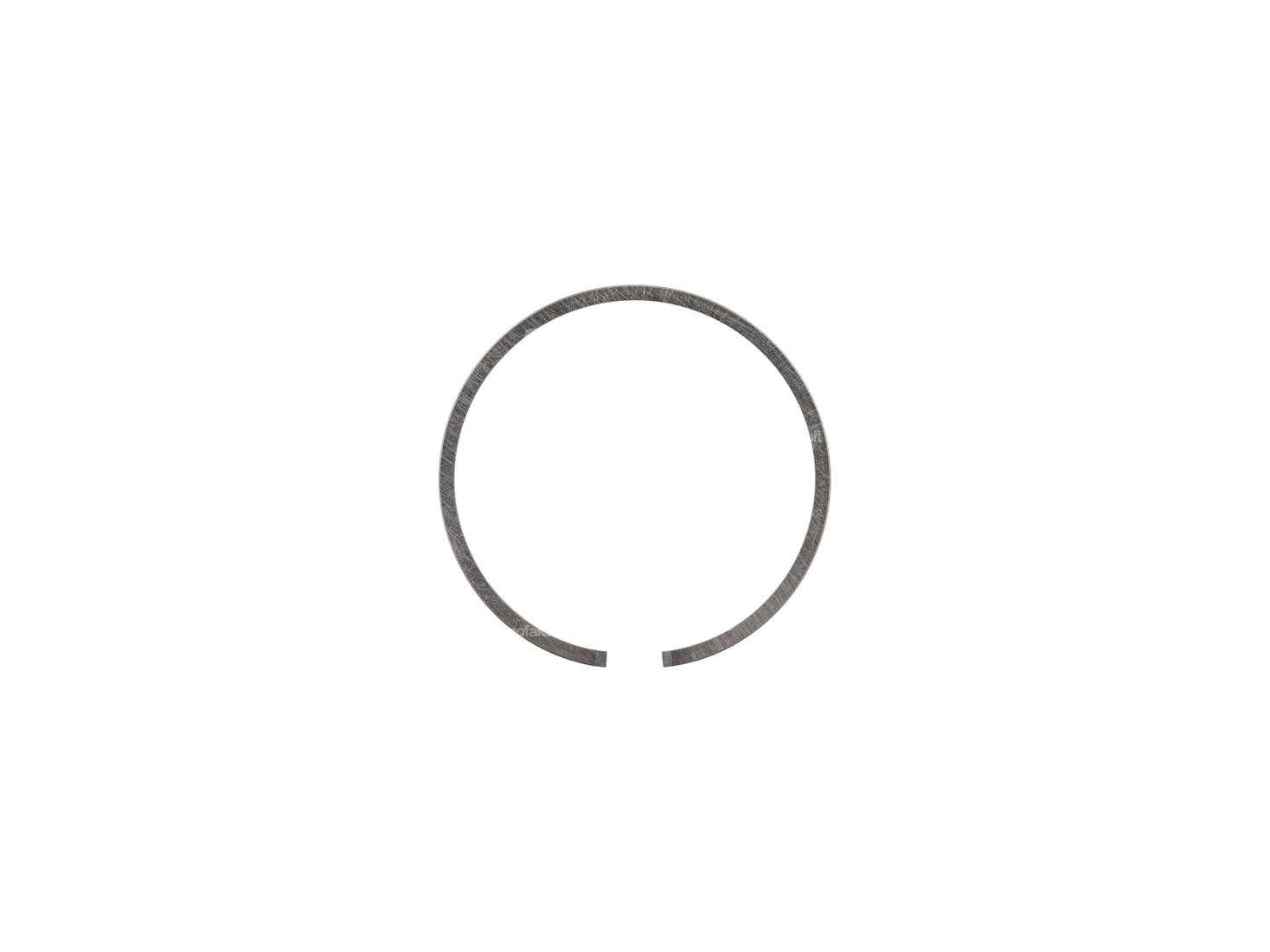

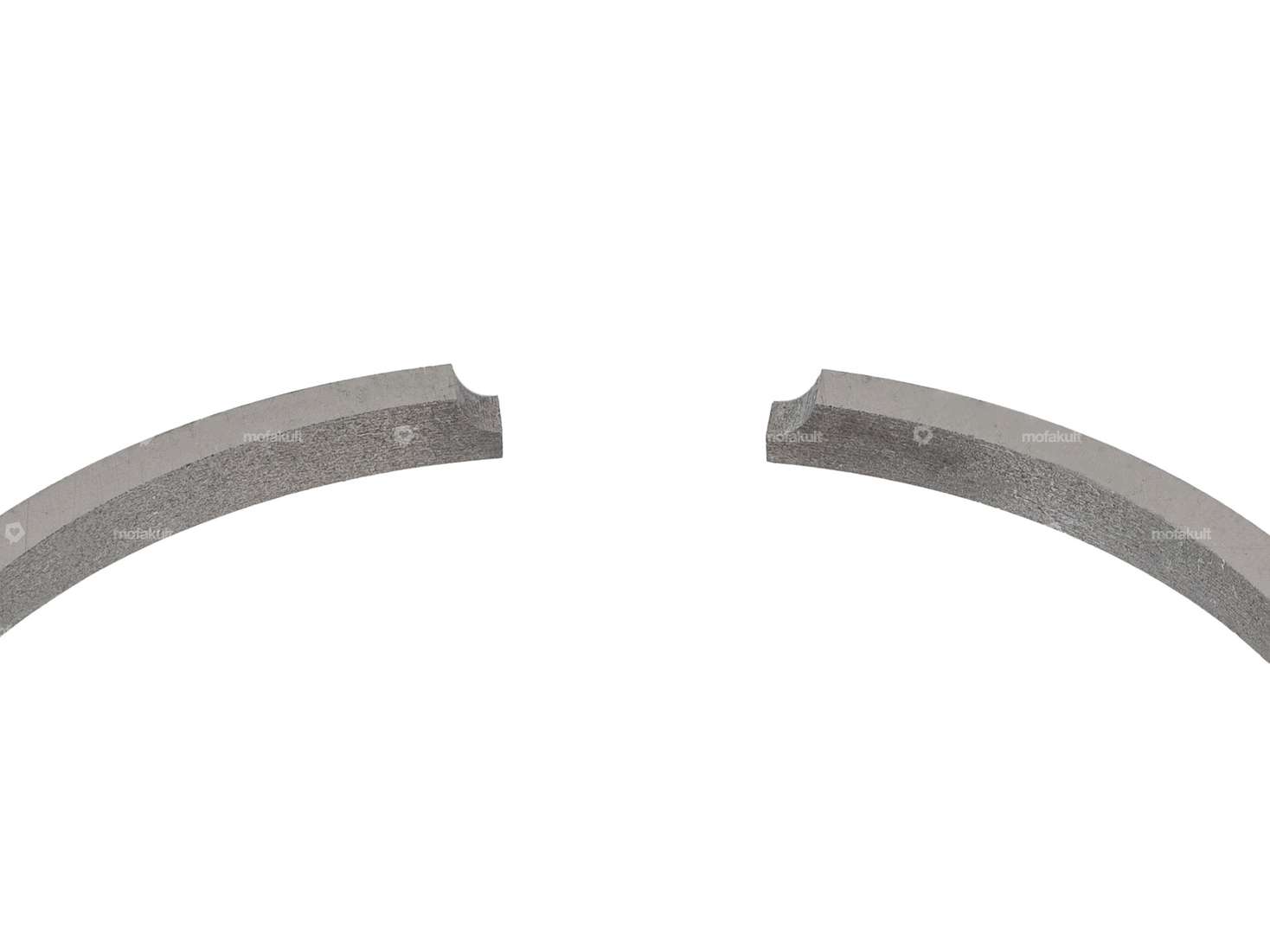

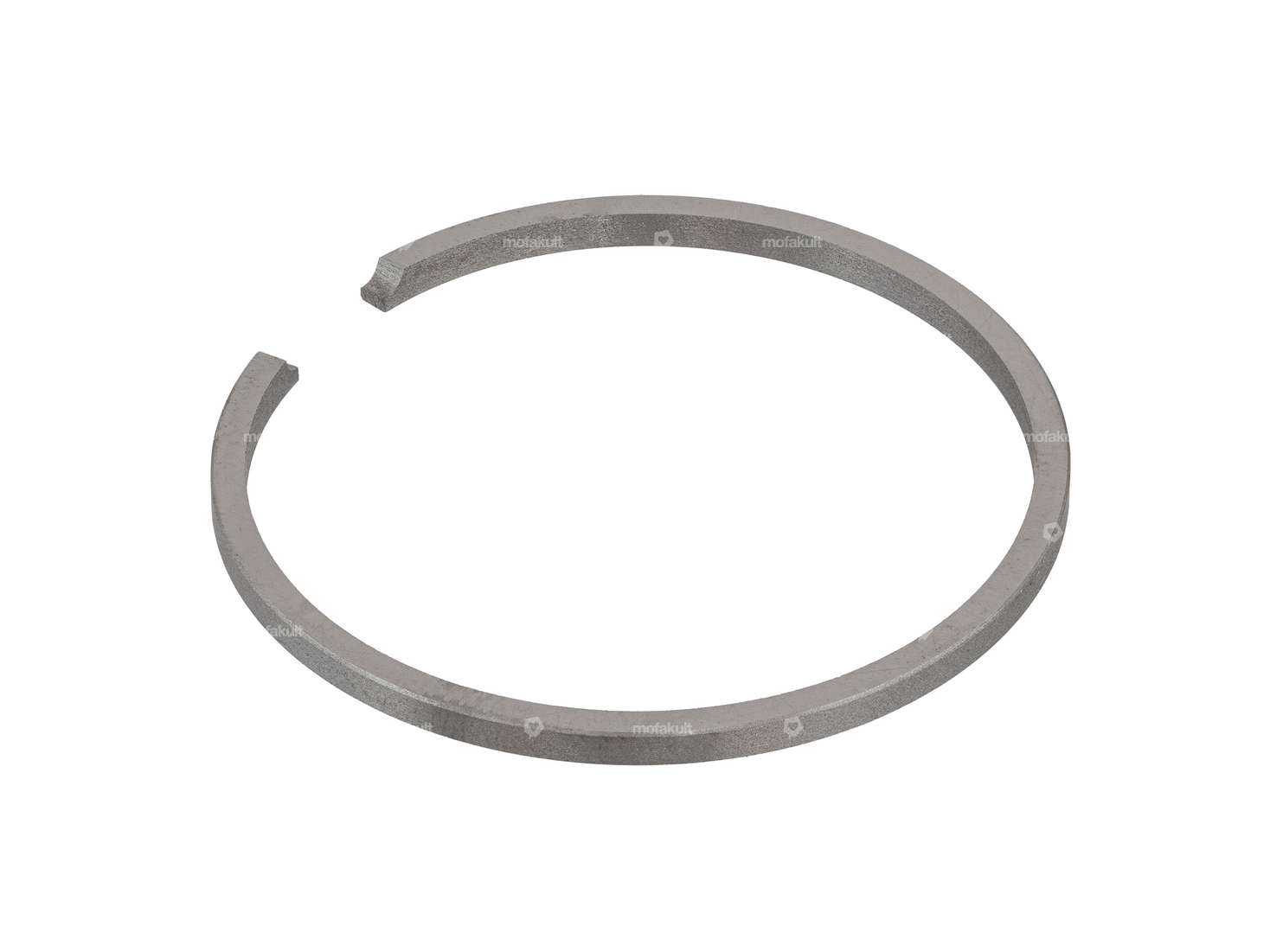

Meteor piston ring 38.8 x 2 mm (FS)

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston ring 38.8 x 1.5 mm (FS)

Nominal diameter: 38 mm · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.6 mm · Height: 1.5 mm

Meteor piston KAT 38.2 - 40.2 mm (10 mm KoBo) | Piaggio Ciao, SI

Manufacturer: Meteor · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Nominal diameter: 39.8 mm · Nominal diameter: 40 mm · Nominal diameter: 40.2 mm · Ø outside piston (A): 38.2 mm · Ø outside piston (A): 38.4 mm · Ø outside piston (A): 38.6 mm · Ø outside piston (A): 38.8 mm · Ø outside piston (A): 39 mm · Ø outside piston (A): 39.2 mm · Ø outside piston (A): 39.4 mm · Ø outside piston (A): 39.6 mm · Ø outside piston (A): 39.8 mm · Ø outside piston (A): 40 mm · Ø outside piston (A): 40.2 mm · Ø piston pin (B): 10 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

Meteor piston 38.2 - 40.2 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Meteor · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Nominal diameter: 39.8 mm · Nominal diameter: 40 mm · Nominal diameter: 40.2 mm · Ø piston pin (B): 12 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS)

Meteor piston 38.2 - 40.2 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo Boxer

Manufacturer: Meteor · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Ø outside piston (A): 38.2 mm · Ø outside piston (A): 38.4 mm · Ø outside piston (A): 38.6 mm · Ø outside piston (A): 38.8 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.6 mm · Curvature (D): 3.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

Honing brush Ø 38 - 51 mm Cylinder

Drive shank Drill chuck: round · Grain size: 180 · Material: Silicon carbide · Area of application: Workshop accessories · Number of components: 1 pcs · Diameter: 38 - 51 mm

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm · Material: Steel

Magura lever screw M5x18 mm

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Thread length: 8.5 mm · Total length: 21.5 mm · Width across flats SW: 8 mm · Ø External head: 8.8 mm · Shank length: 9 mm · Ø shaft: 5.9 mm · Drive: External hexagon · Drive: Slot · Color: silver

Magura lever screw M5x24 mm

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Total length: 27 mm · Width across flats SW: 8 mm · Ø External head: 9 mm · Shank length: 14.5 mm · Ø shaft: 5.9 mm · Drive: Hexagon socket · Color: silver

Magura stop sleeve special Ø 5.5 mm

Manufacturer: Magura · Ø inside: 2.5 mm · Ø inside: 5.5 mm · Nominal diameter inside: 2.5 mm · Ø outside: 4 mm · Ø outside: 7 mm · Total length: 5 mm · Total length: 10 mm

EFFE Condenser with cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Area of application: Original · Area of application: Standard · Capacity: 0.26 µF · Mounting type: Tab for screwing · Connection type: Cable for screwing · Ø outside: 18 mm · Height: 26 mm · Ø mounting hole: 4.4 mm · Piaggio OEM number: 102939

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats (trigger): 10 mm · Width across flats (trigger): 18 mm · Manufacturer: swiing® ingenious parts · Width across flats Screw: 19 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Number of components: 2 pcs · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread)

Set screw M6x20 hexagon

Slotted: No · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Thread length: 20 mm · Total length: 27 mm · Thread type: M6x1 (standard thread)

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Sachs OEM no.: 0245 000 000 · Tomos OEM number: 032039

Lubricating felt flywheel / contact breaker ignition

Material: Felt · Surface: raw · Color: white · Area of application: Original · Pony OEM number: A4665 · Sachs OEM no.: 2865 008 000

Lusito brake lever Magura-Look pointed sheet metal right

Manufacturer: Lusito · Material: Steel · Color: silver
