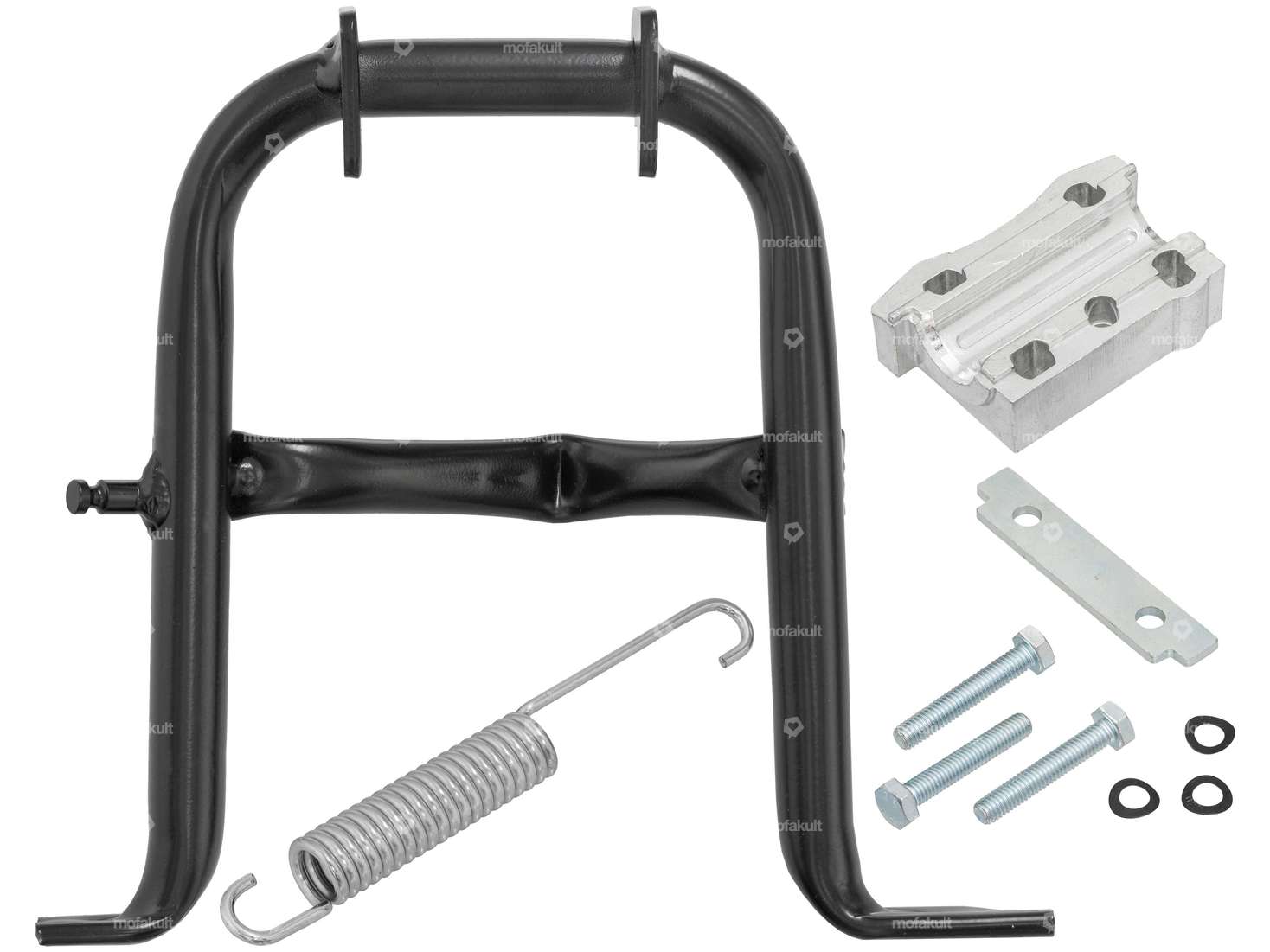

Main stand set | Puch Maxi S

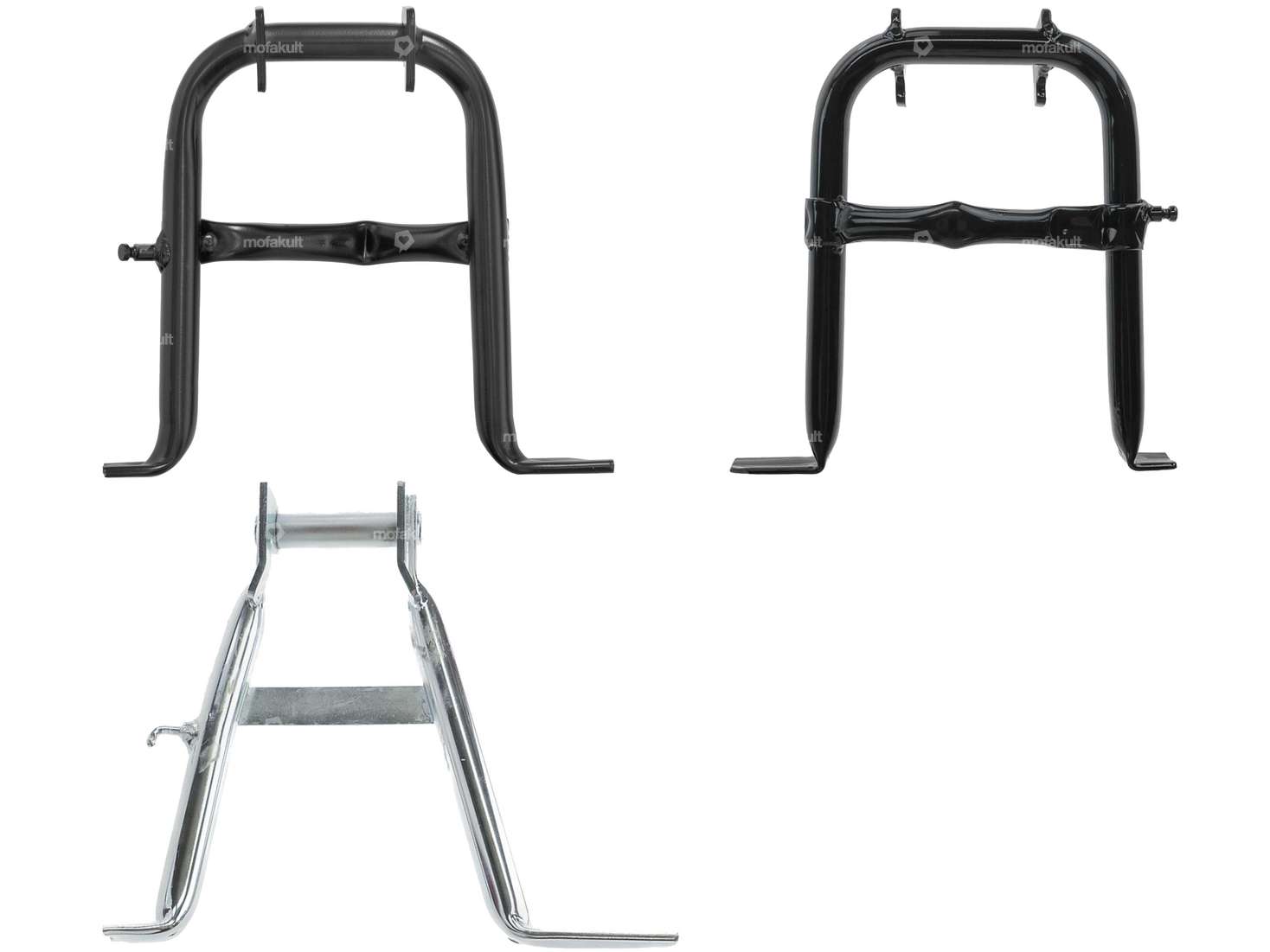

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

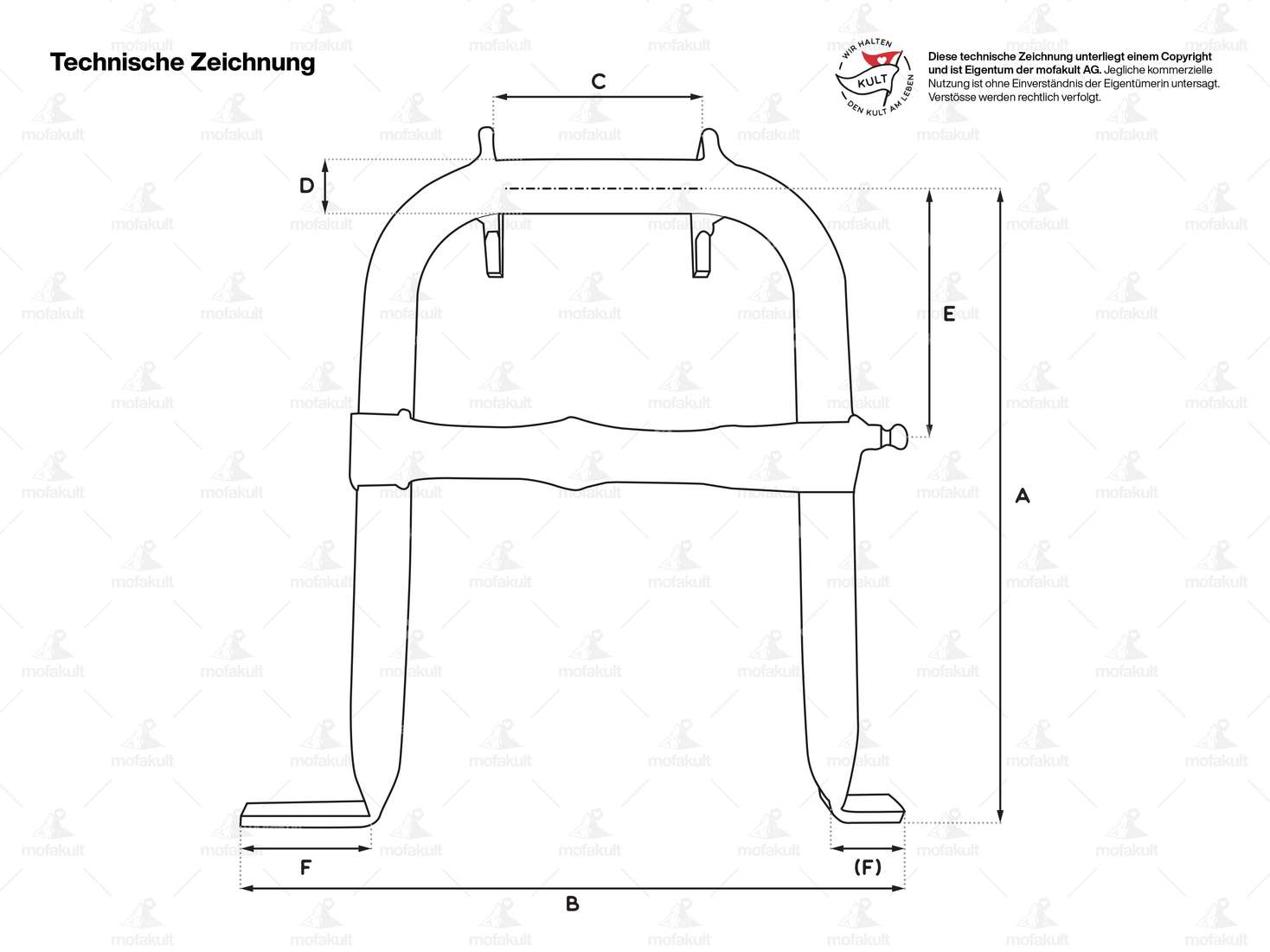

Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 9 mm · Ø outside: 14 mm · Total length: 122 mm

GPO spring puller

Manufacturer: GPO · Area of application: Special tool · Total length: 155 mm · Width: 55 mm

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: raw · Ø inside: 9 mm · Ø outside: 14 mm · Total length: 122 mm

Solid galvanized main stand | Puch Maxi S

Manufacturer: Made in Switzerland · Material: Steel · Surface: chrome-plated · Color: Chrome · Stand base - center mount (A): 210 mm · Total width of stand base (B): 275 mm · Wide receptacle (C): 86 mm · Ø Receptacle (D): 10 mm · Spring nipple distance - center pivot axis (E): 115 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 70 mm · Total height: 220 mm

swiing® revival screw set mounting stand Inox | Puch

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Area of application: Standard · Surface: raw · Color: silver · Drive: External hexagon · Number of components: 12 pcs · Thread length: 17.5 mm · Screw head: Hexagon · Shank: Yes · Thread type: M6x1 (standard thread) · Width across flats SW: 10 mm

Motorex Lithium Grease 190 EP 400 g

Manufacturer: Motorex · Area of application: Chemistry · Area of application: Fat · Contents [g]: 400 g · Temperature resistance (min.): -30 - 120 °C

Buzzetti main stand black (1A quality) | Puch Maxi S, P1 | X30 NS, NL, NG

Manufacturer: Buzzetti · Material: Steel · Color: black · Surface: powder-coated · Stand base - center mount (A): 200 mm · Total width of stand base (B): 230 mm · Wide receptacle (C): 63 mm · Ø Receptacle (D): 18.1 mm · Spring nipple distance - center pivot axis (E): 100 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 45 mm · Total height: 215 mm · Puch OEM number: 349.3.24.500.2

swiing® revival stop plate main stand | Puch Maxi, X30 NS, NL, N-2AH

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 15 mm · Width: 71 mm · Thickness: 4 mm · Mounting type: Screws · Number of fixing points: 2 pcs

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Material: Steel · Color: black · Surface: varnished · Stand base - center mount (A): 207 mm · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm · Total height: 220 mm

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Ø inside: 9 mm · Ø outside: 14 mm · Total length: 122 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Alternative version of the Puch OEM number: 349.4.28.603.2 · Puch OEM number: 349.7.28.503.2

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Total length: 70 mm · Hole spacing: 41 mm · Width: 46 mm · Height: 20 mm · Mounting type: Screws · Number of fixing points: 3 pcs

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm · Mounting type: Union nut

GPO cable duct black | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Plastic · Color: black · Total length: 320 mm · Width: 58 mm · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: raw · Ø inside: 9 mm · Ø outside: 14 mm · Total length: 122 mm

Buzzetti main stand black (1A quality) | Puch Maxi S, P1 | X30 NS, NL, NG

Manufacturer: Buzzetti · Material: Steel · Color: black · Surface: powder-coated · Stand base - center mount (A): 200 mm · Total width of stand base (B): 230 mm · Wide receptacle (C): 63 mm · Ø Receptacle (D): 18.1 mm · Spring nipple distance - center pivot axis (E): 100 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 45 mm · Total height: 215 mm · Puch OEM number: 349.3.24.500.2

Screw M5x16 countersunk head Inox

Material: Chrome steel (known as Nirosta®) · Drive: Slot · Screw head: Countersunk head · Total length: 16 mm · Thread type: M5x0.8 (standard thread)
