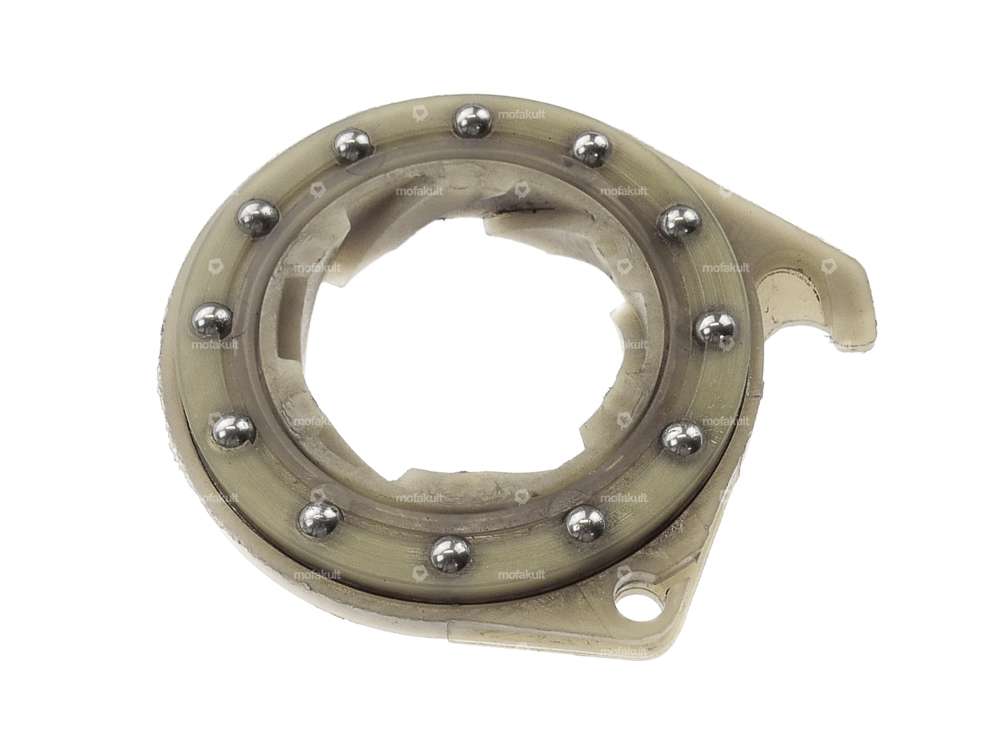

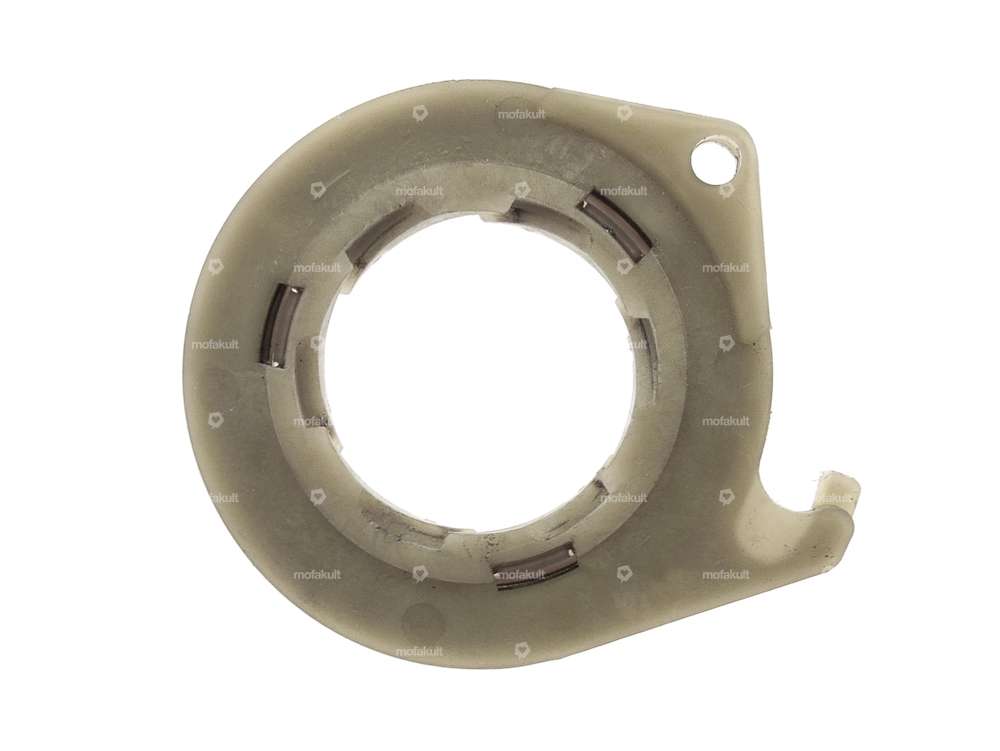

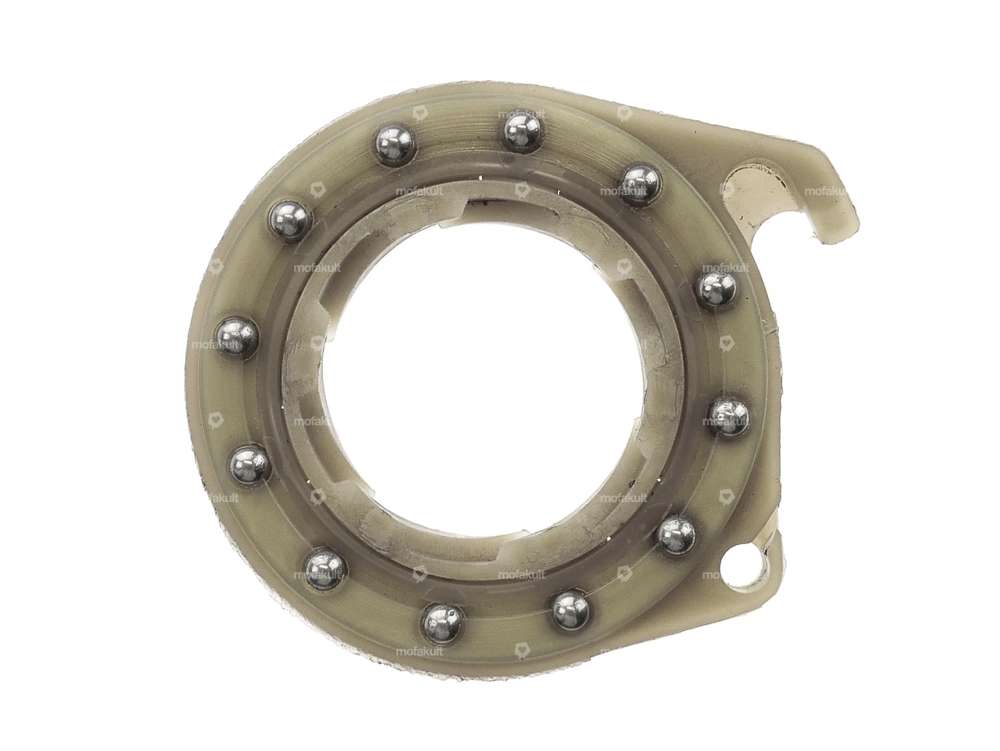

Engaging plate compl. Occ. | Puch ZA50

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Ø mounting hole: 11 mm · Ø outside: 16.4 mm · Clamping diameter: 13 mm · Total length: 25 mm · Color: black · Puch OEM number: 364.2.10.660.1

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

GPO 15 mm carburetor tuning | Puch

Manufacturer: GPO · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning

15 mm intake manifold | Puch E50

Camouflaged: Yes · Material: Aluminum · Ø inside: 14.5 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 54 mm · Height flange center hole: 43 mm · Total length: 47 mm · Area of application: Tuning

Rear light black - red

Test mark: none · Ø Receptacle: 3.5 mm · Material: Plastic · Color: black · Color: red · Bulb holder: BA9s · Width: 65 mm · Depth: 55 mm · Battery operated: No · Brake light: No · Reflectors: Yes · Mounting type: Nuts & bolts · Number of fixing points: 1 pcs

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521

Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8 · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Number of components: 1 pcs

GPO clutch trigger | Puch E50

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened

Airsal 44 mm cylinder kit 65 ccm camouflaged | Puch

Nominal diameter: 44 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Inlet window: 24 / 20 x 15 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: Yes · Area of application: Tuning

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Oil type: GL4 · Contents [ml]: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

Starter cable in engine | Puch ZA50

Ø Stranded wire: 1.5 mm · Cable length: 68 mm · Nipple shape: Barrel (transverse) · Ø nipple: 6 mm · Nipple length: 8 mm · Manufacturer: Made in Austria · Puch OEM number: 910.4.18.001.0
