Crankshaft
NSK BO15 shoulder ball bearing 15/40/10 (A4502)
Bearing type: Shoulder bearing · Stock number: BO15 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Material: Brass · Material: Steel · Surface: blank · Width: 10 mm · Ø outside: 40 mm · Ø inside: 15 mm · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001
EUR 29.30
NSK E15 shoulder ball bearing 15/35/8 (A1149)
Bearing type: Shoulder bearing · Stock number: E15 · Inner ring width: 8 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Width: 8 mm · Ø outside: 35 mm · Ø inside: 15 mm · Area of application: Standard · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006
EUR 29.30
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 6.40
Oil seal FPM 15/30/7 B DUO | Sachs 50/2, 503
Temperature resistance (min.): -30 - 200 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: FPM - Fluororubber · Surface: raw · Width: 7 mm · Ø outside: 30.1 mm · Ø inside: 15 mm · Area of application: Standard · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 9.30
Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2
Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 6.40
swiing® revival shim set | Sachs 503, 502, 50/2, 50/3
Nominal diameter inside: 13 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø outside: 18 mm · Ø outside: 21 mm · Ø inside: 12.5 mm · Ø inside: 15.2 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 1 mm
EUR 19.90
NTN 6203 Ball bearing 17/40/12
Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Surface: blank · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm
EUR 7.65
Oil seal FPM 15/30/7 BS | Sachs 50/2, 503
Temperature resistance (min.): -30 - 200 °C · Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: FPM - Fluororubber · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 9.20
Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)
Temperature resistance (min.): -30 - 100 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Surface: rubberized · Width: 5.5 mm · Ø outside: 30 mm · Ø inside: 15 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 9.30
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548
EUR 14.00
swiing® revival needle roller bearing 12/15/14.2 original
Bearing type: Needle sleeve · Manufacturer: swiing® revival parts · Bearing cage: Sheet steel cage · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 155 001 · Tomos OEM number: 035548
EUR 10.50
swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony OEM number: A1717 · Sachs OEM no.: A1717 · Sachs OEM no.: 0246 049 000
EUR 8.15
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Width: 16.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 16.40
Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Width: 7 mm · Ø outside: 33 mm · Ø inside: 17 mm
EUR 10.50
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats (trigger): 8 mm · Width across flats (trigger): 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Surface: galvanized (blue) · Number of components: 1 pcs · Total length: 120 mm · Area of application: (Dis)assembly tool · Diameter: 24 mm · Diameter: 40.3 mm · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread)
EUR 51.80
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm
EUR 23.50
Oil seal NBR 15/30/9 B DUO crankshaft | Sachs 503 ADV, AB, AC (A1832)
Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Width: 9 mm · Ø outside: 30 mm · Ø inside: 15 mm
EUR 11.70
Hot

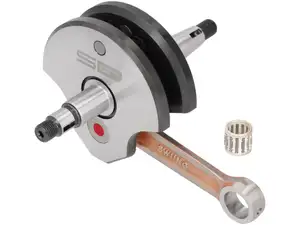

swiing® ingenious crankshaft "Wolfram Edition" | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 43.1 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Area of application: High End · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Weight: 901 g · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm
EUR 205.00
swiing® revival crankshaft standard | Sachs 50/2, 50/3
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Area of application: Standard · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Weight: 901 g · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400
EUR 134.30
NTN 6203 C4 ball bearing 17/40/12 engine | Puch E50
Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C4 · Bearing cage: "-" Sheet steel cage ball-guided · Material: Steel · Surface: blank · Width: 12 mm · Ø outside: 40 mm · Ø inside: 17 mm · Area of application: Standard
EUR 12.80
Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)
Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 84 mm · Total length of crankpin on clutch side: 101.15 mm · Total length crankpin ignition side: 64.1 mm · Ø crank webs: 85 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 30.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 51 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Ø 3rd step (on the clutch side): 8 mm · Length of shoulder (ignition side): 34 mm · Weight: 875 g · Number of gears: 2 pcs · Area of application: Standard · Alternative version of the Pony OEM number: A2900 · Pony OEM number: A2901 · Pony OEM number: A2902 · Alternative version of the Sachs OEM number: 0288 115 002 · Alternative version of the Sachs OEM number: 0288 115 102
EUR 247.40
Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)
Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Surface: rubberized · Width: 7 mm · Ø outside: 35 mm · Ø inside: 15 mm
EUR 10.50
Hot
swiing crankshaft Racing (Version 2.0) | Sachs 50/2, 50/3
Manufacturer: swiing · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.7 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Area of application: Racing · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Weight: 878 g · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 30 mm
EUR 169.60
Oil seal FPM 15/30/5.5 AS crankshaft & main shaft | Sachs 503, 504, 535, 504/1 (A4215 / A5602)
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 5.5 mm · Manufacturer: Sachs · Material: FPM - Fluororubber · Surface: rubberized · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100
EUR 11.40
Page 1 of 3
The optimum crankshaft for your Sachs moped
Robustness, durability, resistance and precision - there is hardly any other part of your mopeds where these properties are as crucial as they are for the crankshaft. If it or other parts of the assembly are getting on in years, you should therefore always look for quality spare parts. At mofakult you will find complete Sachs full cheek crankshafts from standard models to high-end variants for your tuned moped from swiing, Rito and Jasil Top Racing. You can even find rare, original Sachs NOS crankshafts in our large range. Individual components such as shoulder ball bearings, shims and spacers, connecting rods, oil seals and needle bearings from Malossi, Polini and other proven manufacturers complete the wide range of spare parts for this assembly.
Indispensable precision component
As an essential component in the piston engine of the moped, the crankshaft has a very special task. With the help of a well-thought-out mechanism and the so-called connecting rods, it converts the ascending and descending movement of the piston inside the cylinder into torque. This energy is then transferred to the gearbox via the moped clutch. As the crankshaft is a precision component that has to be fitted very accurately, installation and removal not only requires expert assembly skills and the necessary tools. A certain amount of dexterity is also required. If you are confident enough to carry out the assembly, you should definitely have a hot air gun to hand to heat the bearing. You will also need a torque spanner and a tool for separating the crankcase.
High-end crankshafts for tuned mopeds
Do you like speed and have given your Sachs moped a moderate to extreme tuning set-up? Then the standard versions of the crankshaft are out of the question for your moped. You need a special racing crankshaft for your tuned Sachs moped. And of course you will also find precisely such high-end parts in our range! These high-quality customised parts can withstand the toughest loads. For maximum pre-compression, the large balancing bores in the cheeks are sealed with inserts made of durable aluminium. So you can really get the absolute maximum out of your Sachs plane!
Order high-quality crankshafts for your Sachs moped at mofakult
Discover crankshafts from brand manufacturers Rito and Malossi, rare Sachs original parts, bearings for gearboxes and clutches, shim discs and matching oil seals in our range. Whether you're looking for a spare part for Sachs models 502, 503, 50/3, 505, 535 or 504, you'll find what you're looking for here. Have you already discovered the fascinating selection of exciting tuning parts? Are you tweaking the individual style of your Sachs mopeds? Then you'll be interested in the selection of fascinating custom parts. Just browse through our categories! You'll discover lots of exciting components and cool accessories for your moped. Do you have a question about a specific product, your delivery or payment options? Then don't hesitate to drop us an e-mail. We will be happy to answer your questions. The mofakult team is also available on the phone. We look forward to your call.
