High-end racing clutch suitable for your manual Sachs moped / moped with 503 engine.
The specially designed 4-plate clutch is the non-plus-ultra when it comes to transmitting high power in your Sachs engine.

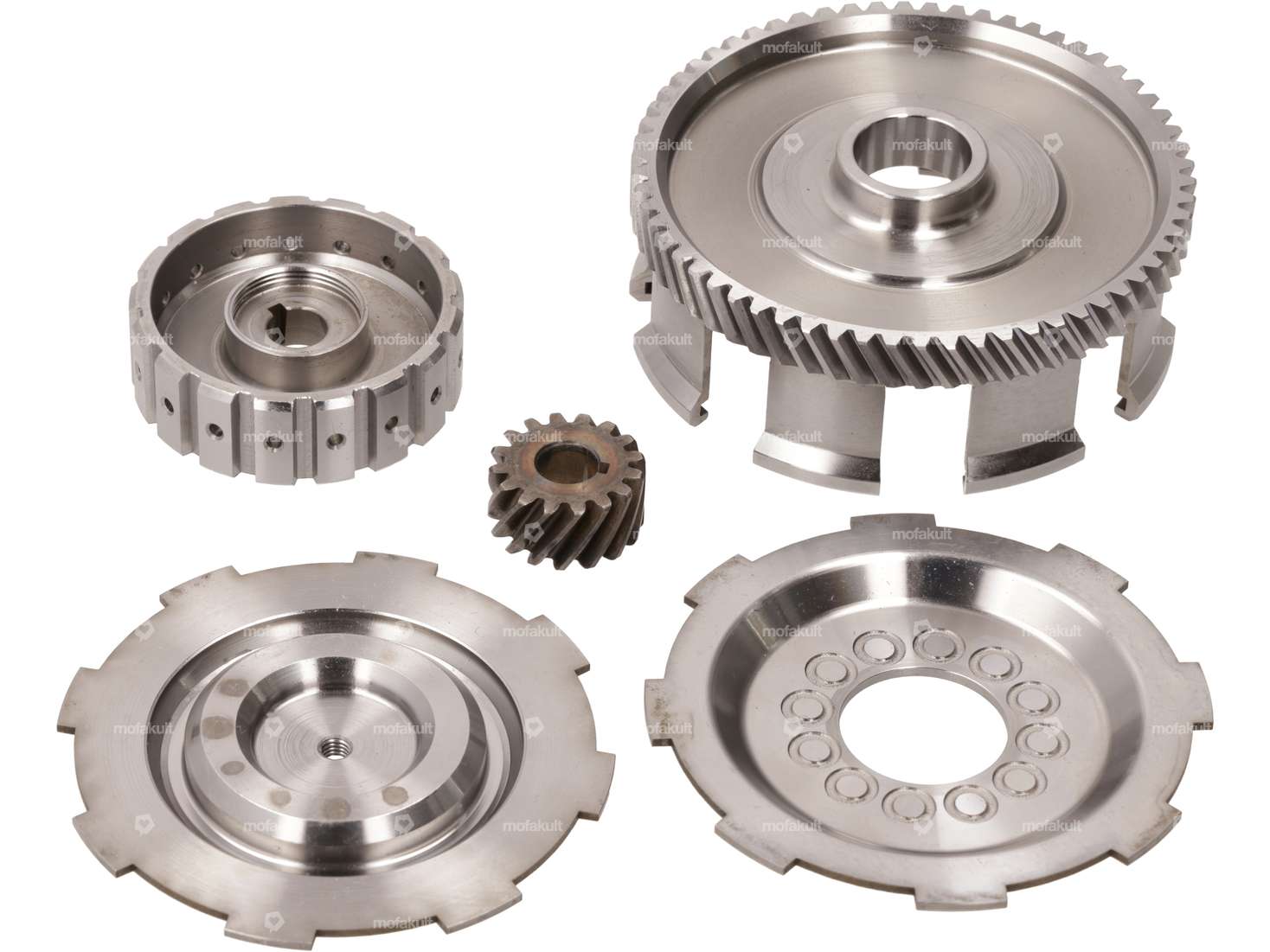

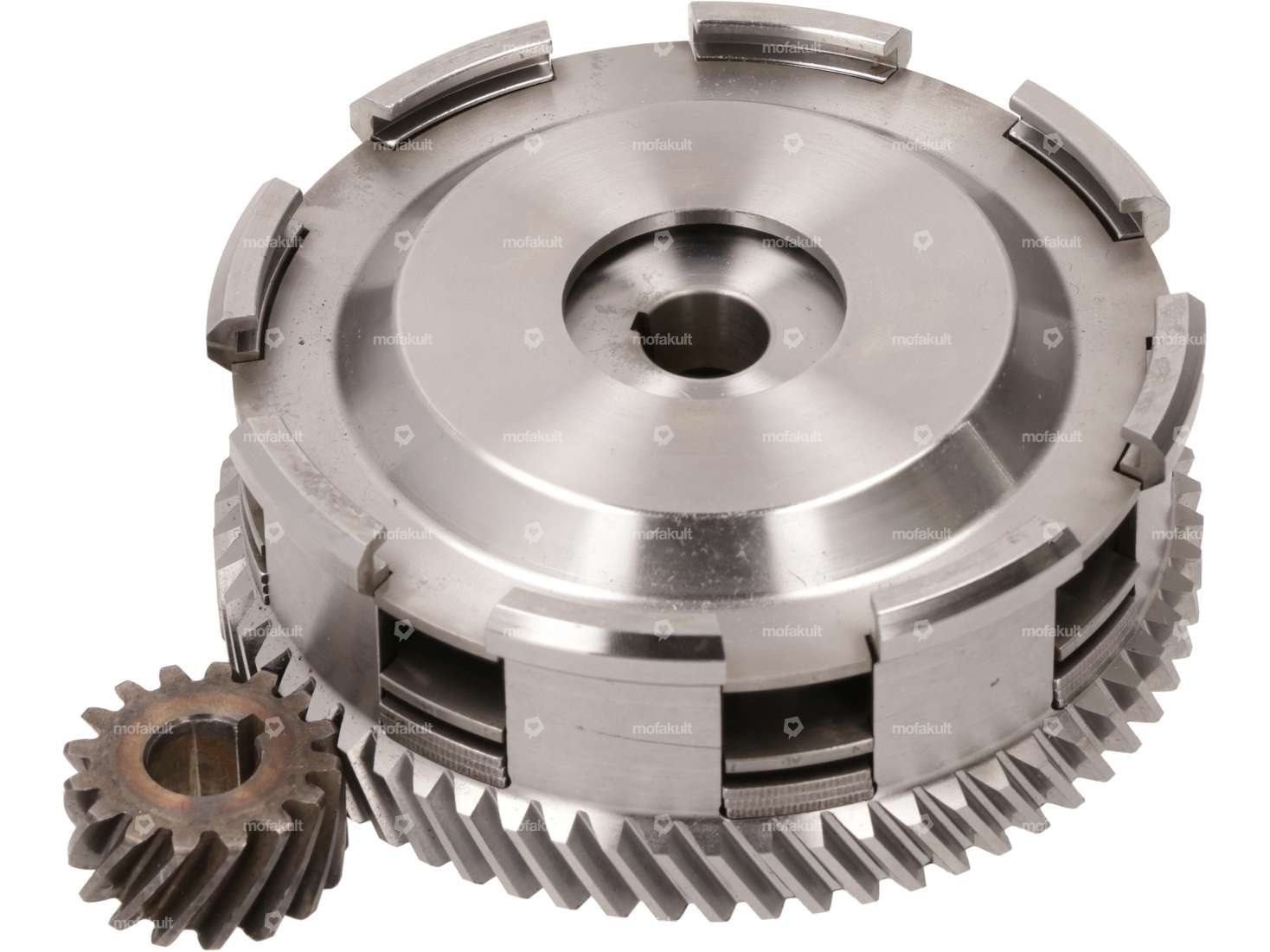

The four clutch plates allow an enormous amount more torque to actually be transmitted. Since the power is transmitted with less spring force, the clutch is also gentle on other components, making your engine more durable. The clutch basket is made of CNC-machined steel and offers more mass, which has a positive effect on heat resistance, as well as a lower load on the basket, as the steel plates have eight instead of six driver arms. The driver inside is now larger and has several oil holes. In addition, the narrower clutch linings result in faster and better oil displacement.
The compact design means that the clutch can be installed on the Sachs 503 engine without any modifications. To install the high-performance clutch on a 50/2, 50/3, 50/4 engine, a spacer for the gearbox cover must be installed.
We recommend using the clutch with 12 standard springs.

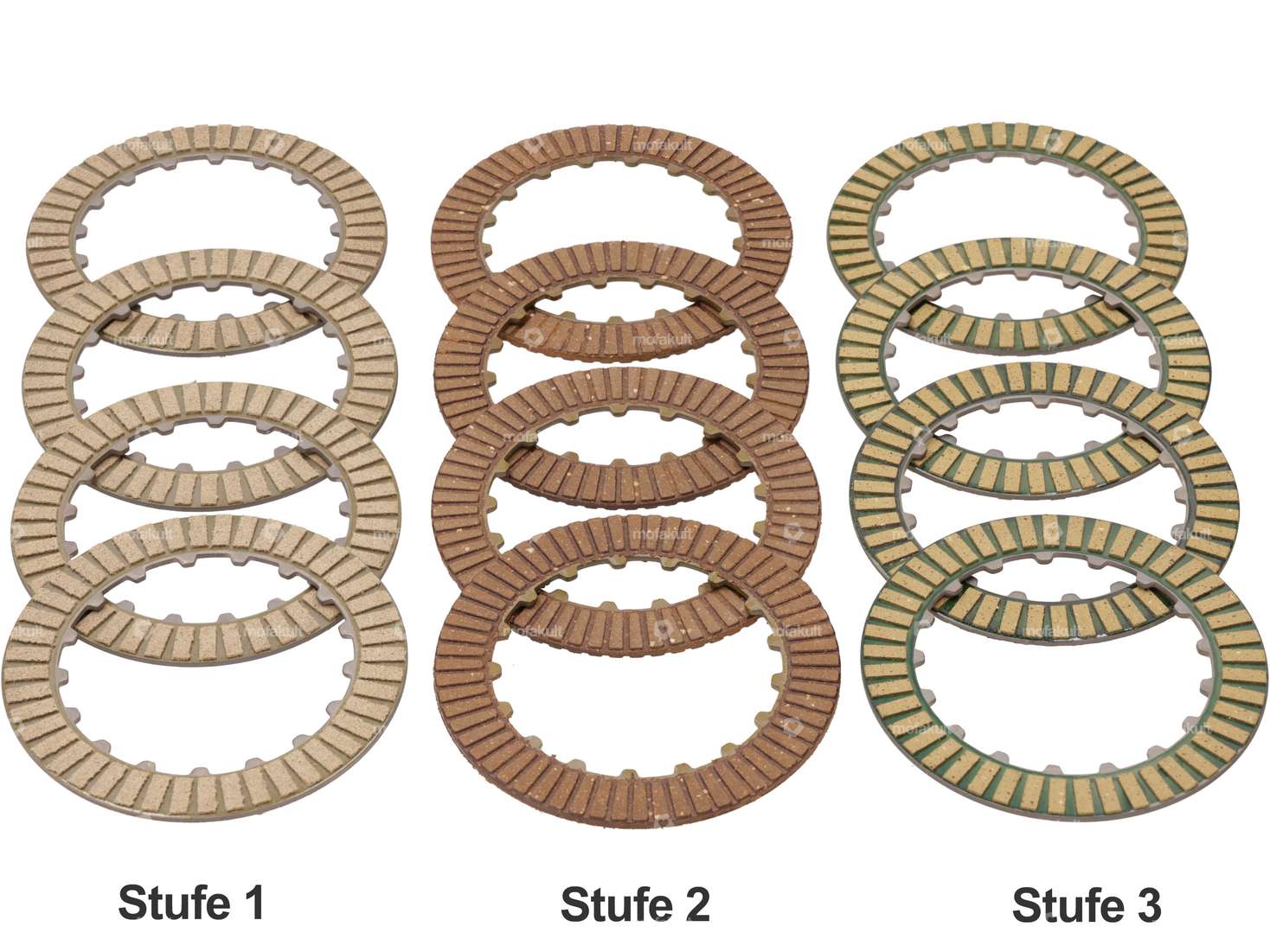

There are three different clutch plates with different properties for the tuning clutch.
- Stage 1 paper (gray): no wear of the steel plates, rather soft clutch behavior
- Stage 2 cork-rubber (red): little wear of the steel plates, sporty ¨bertragungsleistung
- Stage 3 sintered technology (grün): Increased wear of the steel plates, uncompromising transmission performance
You can find the alternative 3 multi-plate clutch, installation tool and replacement plates in the accessories section.
Quality product from the ADDY by Schöb Engineering brand.

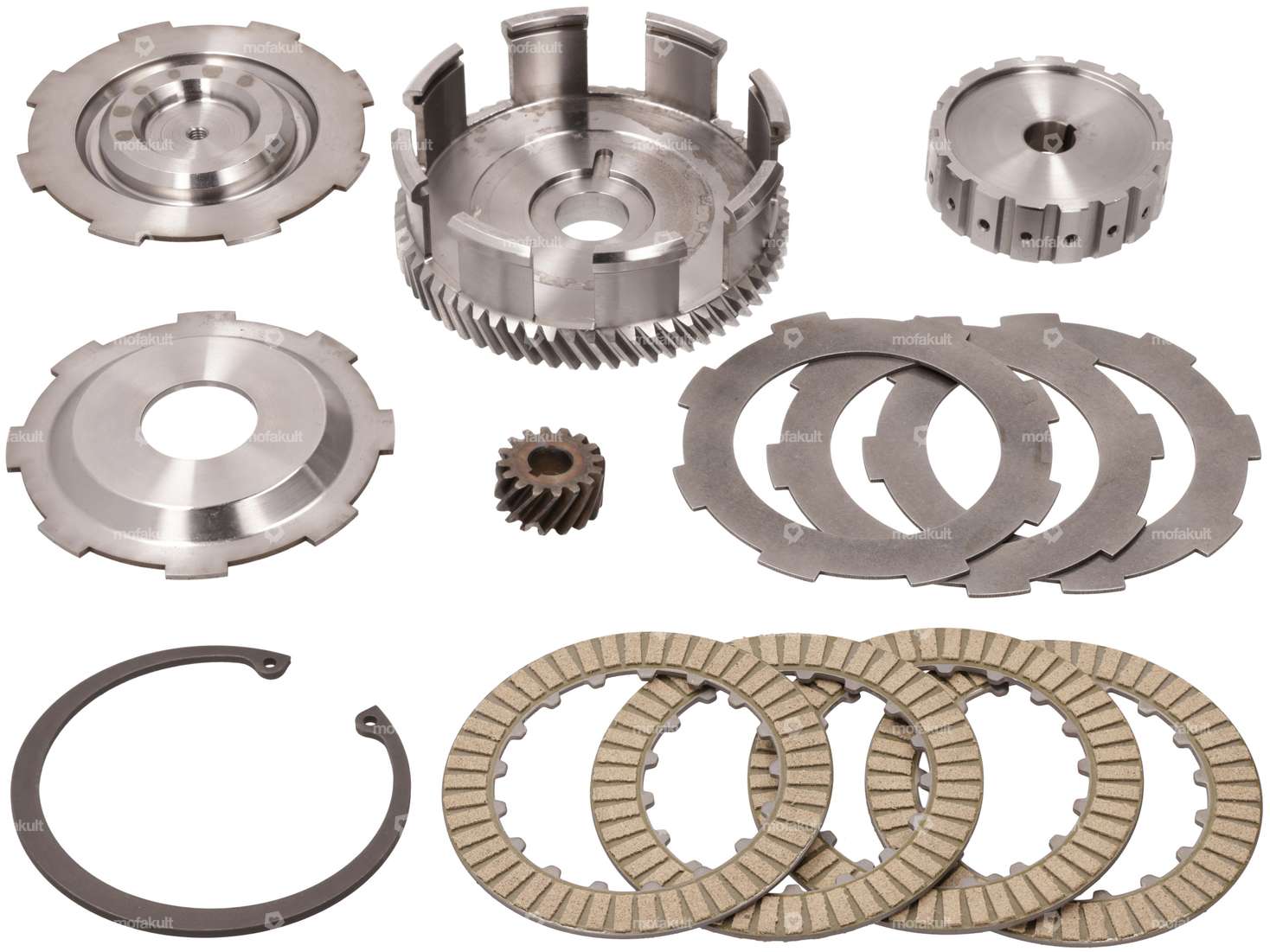

The set includes the following fixed parts:
Manufacturer: ADDY · Surface: raw · Recording type: Cone mounting · Number of slats: 4 pcs · Number of springs: 12 pcs · Area of application: High End
Details
| Manufacturer | ADDY |
| Area of application | High End |
| Surface | raw |
| Recording type | Cone mounting |
| Number of slats | 4 pcs |
| Number of springs | 12 pcs |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
